Section 28 (Heating / Air Conditioning System): Compressor: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

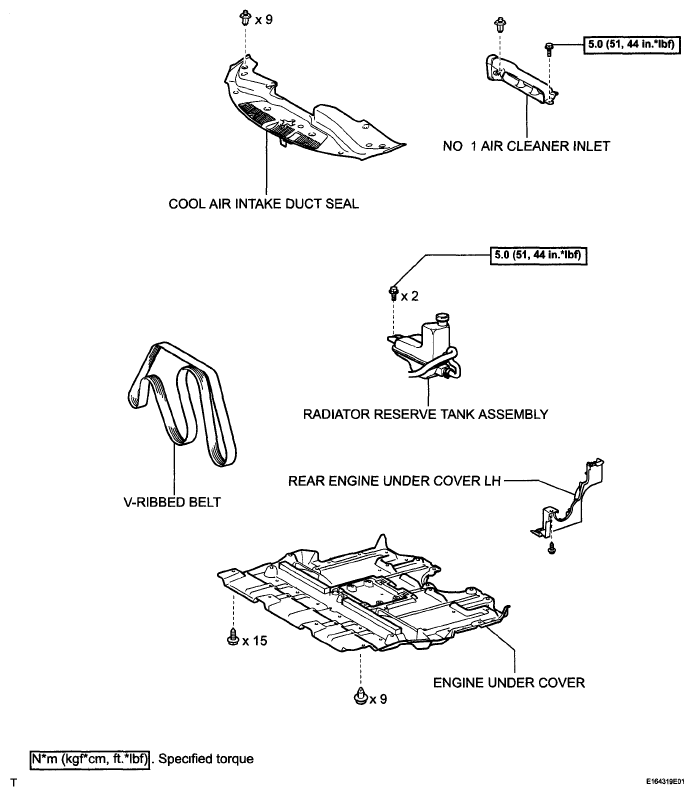

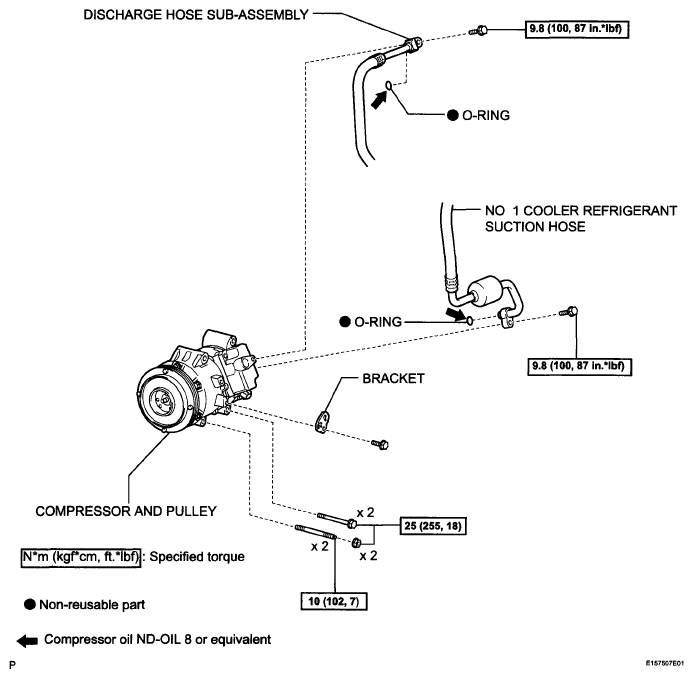

Fig 1: Identifying Compressor Replacement Components With Torque Specifications (1 Of 2)
