Seat Position Sensor: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL SEAT POSITION SENSOR
1. Install the seat position sensor to the seat position sensor protector with the pin as shown in the illustration.

  Fig 1: Installing Seat Position Sensor To Seat Position Sensor Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a 1.3 mm (0 0512 in.) feeler gauge, temporarily install the seat position sensor with the seat position sensor protector
  NOTE:
  - If the seat position sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the seat position sensor with a new one.
  - When installing the seat position sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.

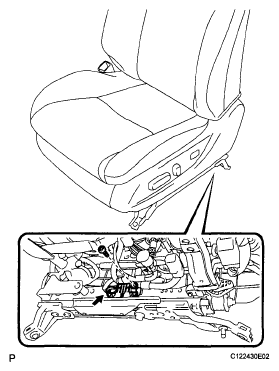

    Fig 2: Identifying Seat Position Sensor Clearance
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  HINT:

  Be sure that the clearance between the seat position sensor and the seat rail is within 0.6 mm (0.0236 in.) to 2 0 mm (0.0787 in.)
3. Using a "TORX" socket wrench (T30), tighten the "TORX" screw to install the seat position sensor with the seat position sensor protector
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
4. Make sure that the clearance between the seat position sensor and the seat rail is within 0.6 mm (0.0236 in.) to 2.0 mm (0.0787 in.).
5. Connect the connector
  NOTE: When connecting the airbag connector, take care not to damage the airbag wire harness.
6. Check that there are no loose parts after installing the seat position sensor.
INSTALL FRONT SEAT ASSEMBLY LH
1. Install the front seat assembly LH (See INSTALLATION ).

  Fig 3: Locating Front Seat Assembly LH And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
