Front Shock Absorber: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

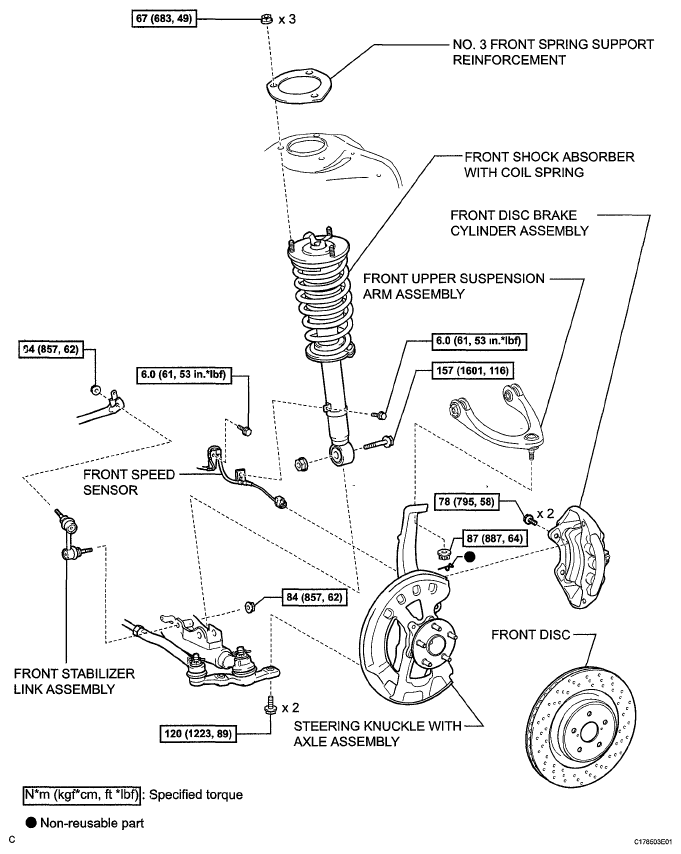

Fig 1: Identifying Front Shock Absorber Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

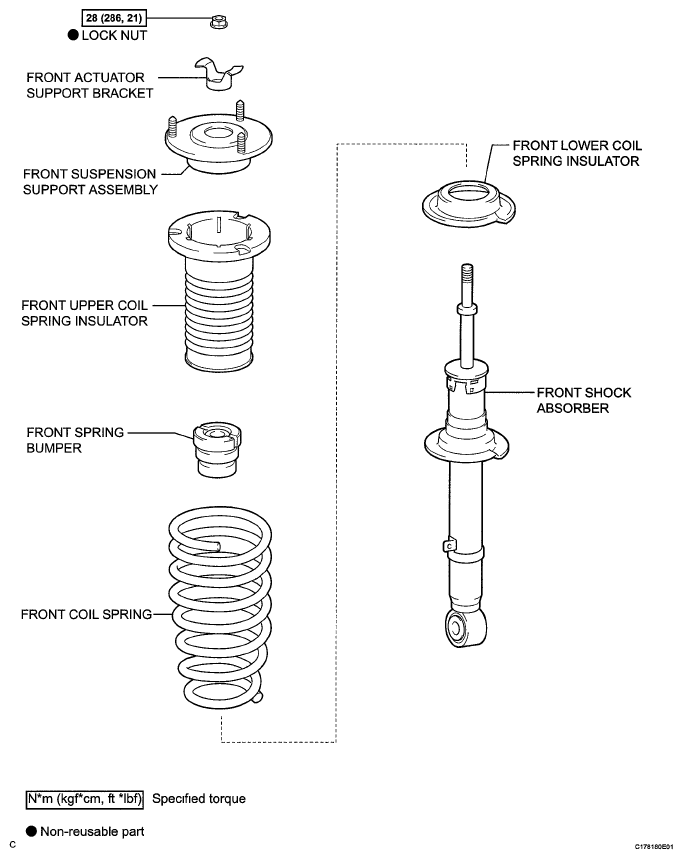

Fig 2: Front Shock Absorber Replacement Components With Torque Specifications (2 Of 3)

Fig 3: Front Shock Absorber Replacement Components With Torque Specifications (3 Of 3)
