Shift Paddle Switch Circuit: Wiring Diagram

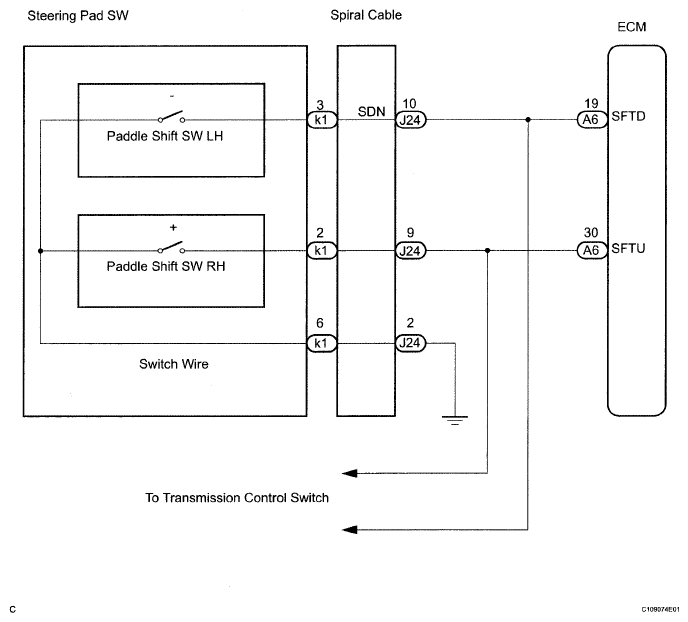

Fig 1: Shift Paddle Switch - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
