Extension Housing Rear Oil Seal: Components

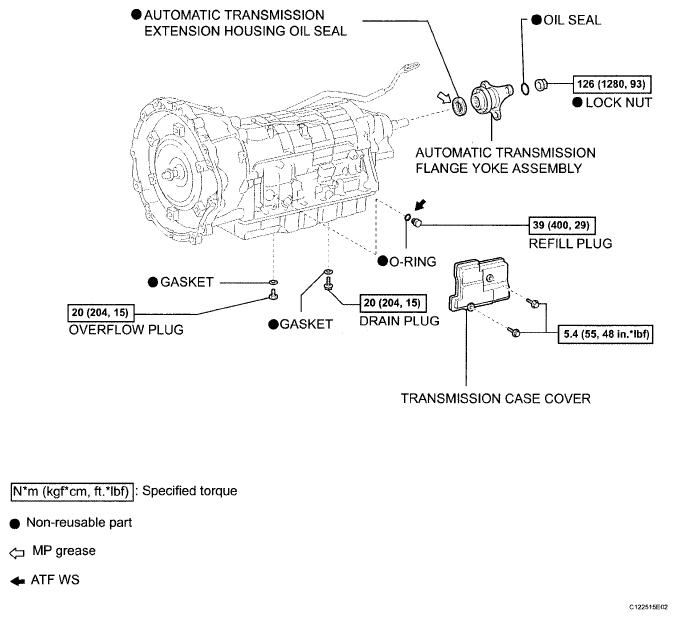

Fig 1: Identifying Extension Housing Rear Oil Seal Replacement Components With Torque Specification (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Extension Housing Rear Oil Seal Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
