VSC OFF Indicator Light Remains ON
›
Wiring Diagram
VSC OFF Indicator Light Remains ON: Wiring Diagram

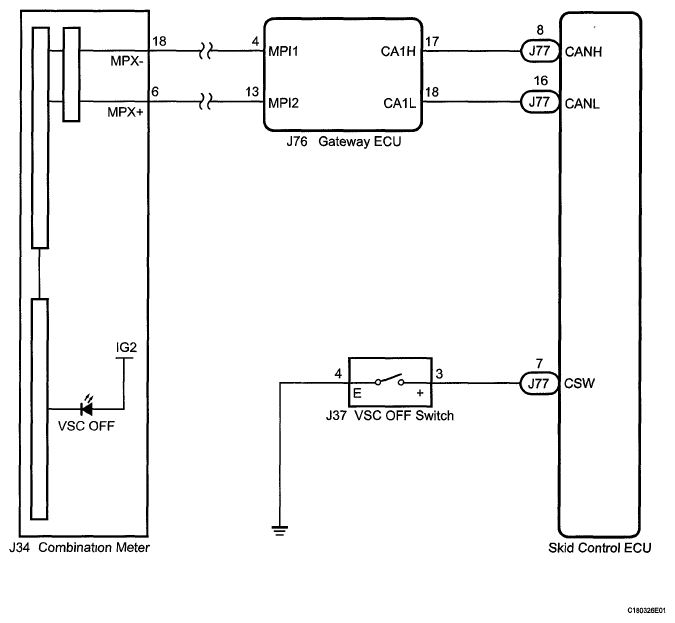

Fig 1: Combination Meter Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
