VSC Warning Light Remains ON: Wiring Diagram

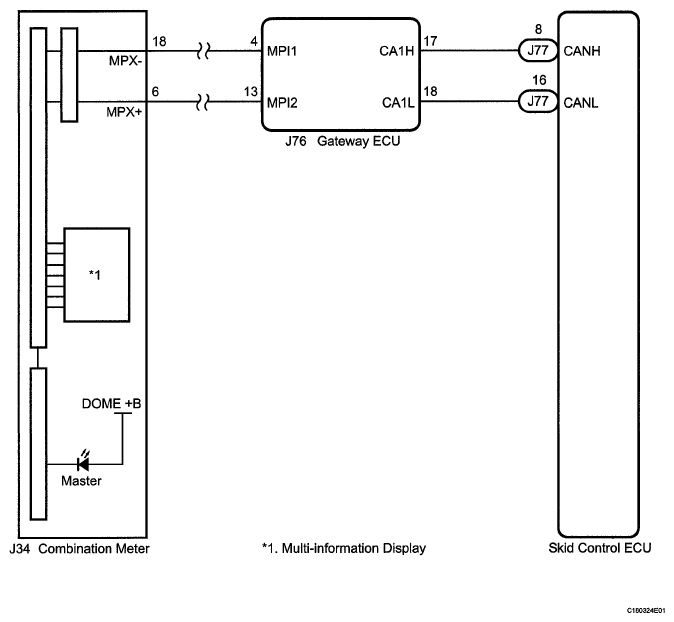

Fig 1: Combination Meter Wiring Diagram
G05752649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
