Steering Wheel: Components

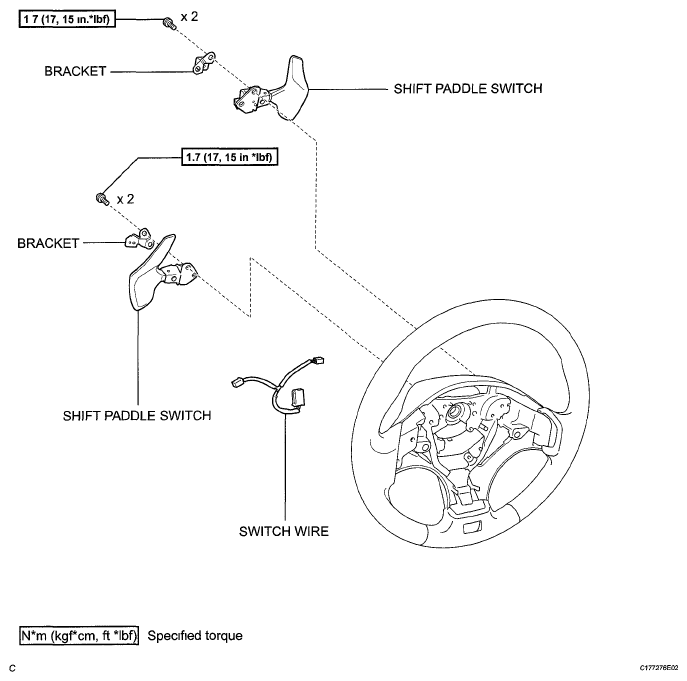

Fig 1: Steering Wheel Assembly Replacement Components (1 Of 5) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

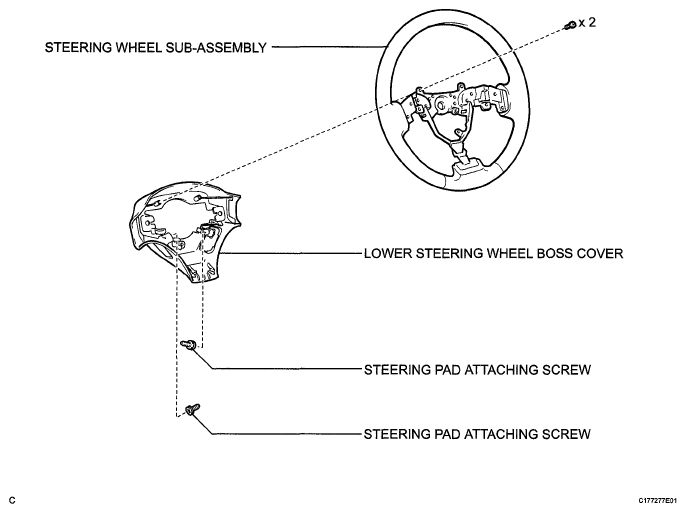

Fig 2: Identifying Steering Wheel Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

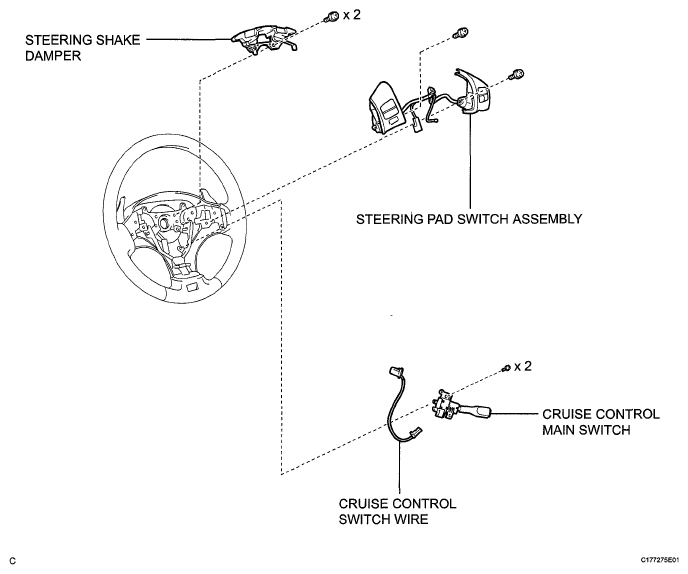

Fig 3: Steering Wheel Replacement Components (3 Of 4) with Torque Specifications

Fig 4: Identifying Steering Wheel Components (4 Of 4)
