Radio Antenna Cord: Components

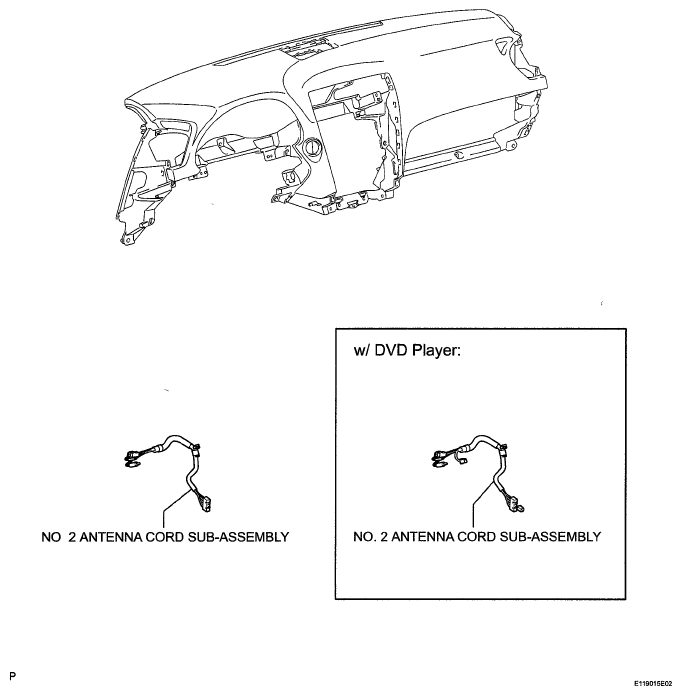

Fig 1: Identifying Radio Antenna Cord Components (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

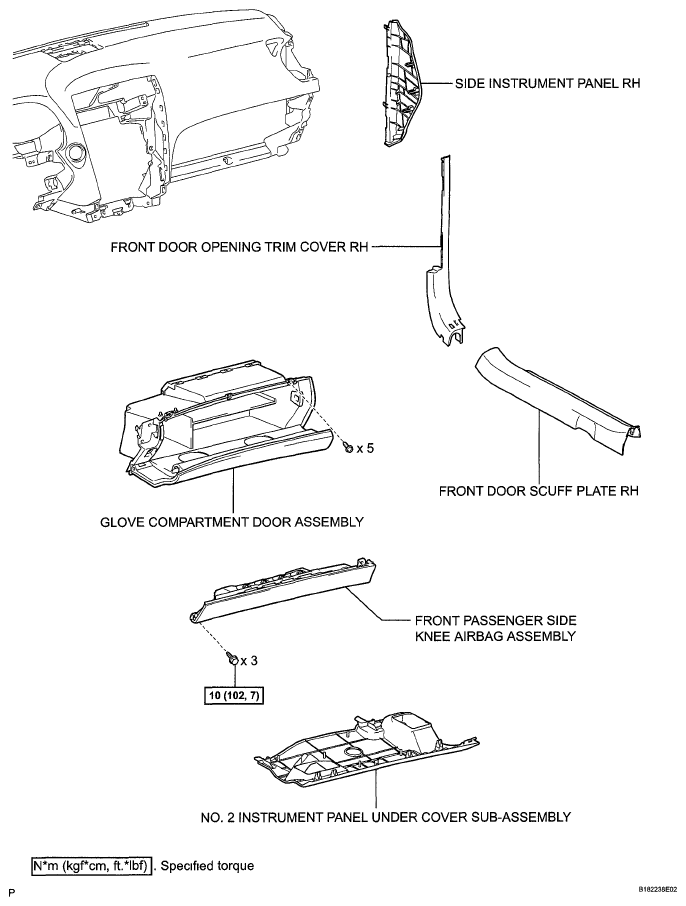

Fig 2: Radio Antenna Cord Replacement Components (2 Of 9) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

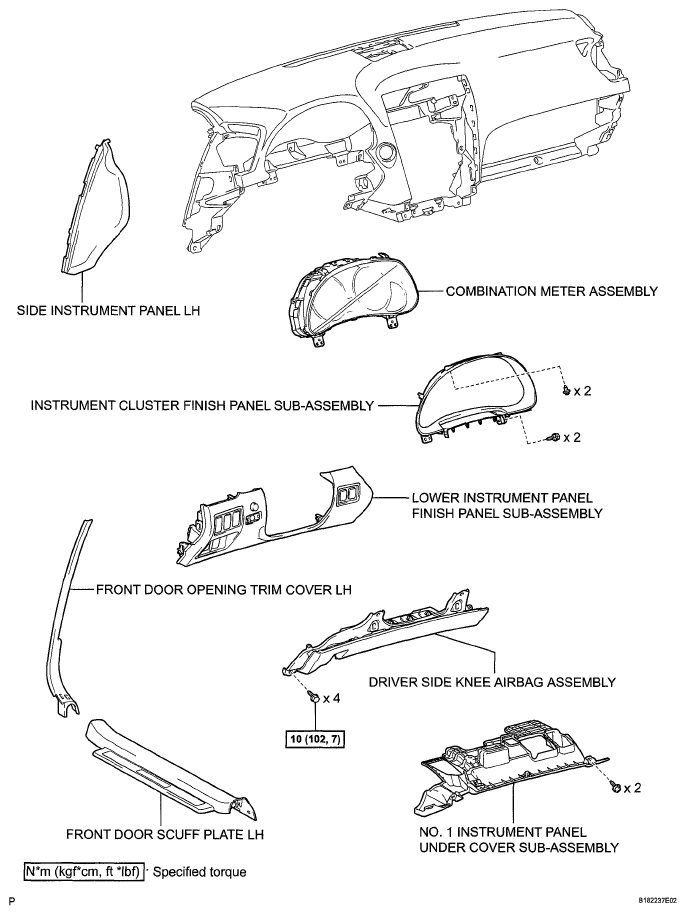

Fig 3: Radio Antenna Cord Replacement Components (3 Of 9) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

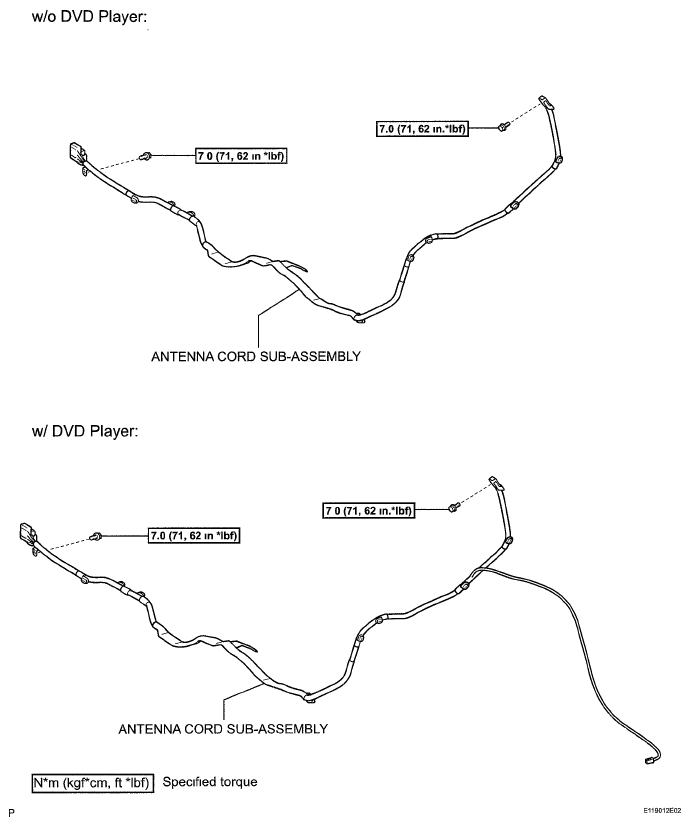

Fig 4: Radio Antenna Cord Replacement Components (4 Of 9) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Radio Antenna Cord Replacement Components (5 Of 9) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Radio Antenna Cord Components (6 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Radio Antenna Cord Replacement Components (7 Of 9) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Radio Antenna Cord Components (8 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Radio Antenna Cord Replacement Components (9 Of 9) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
