Navigation Voice Circuit: Wiring Diagram

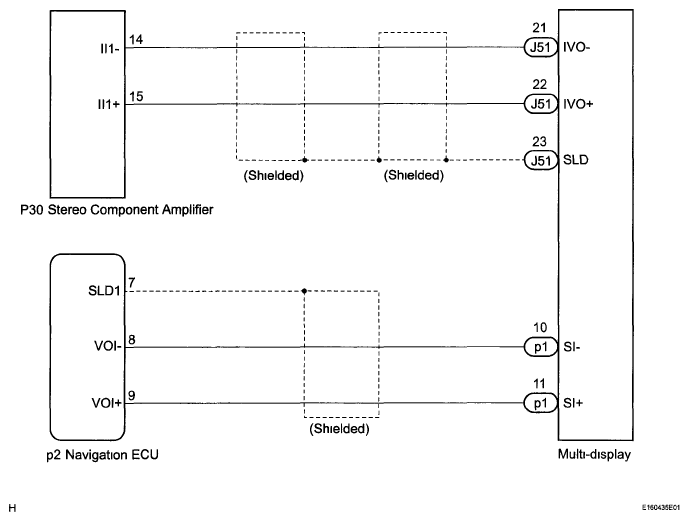

Fig 1: Navigation Voice - Wiring Diagram

G05753716

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
