Entry Lock And Unlock Switch: Components

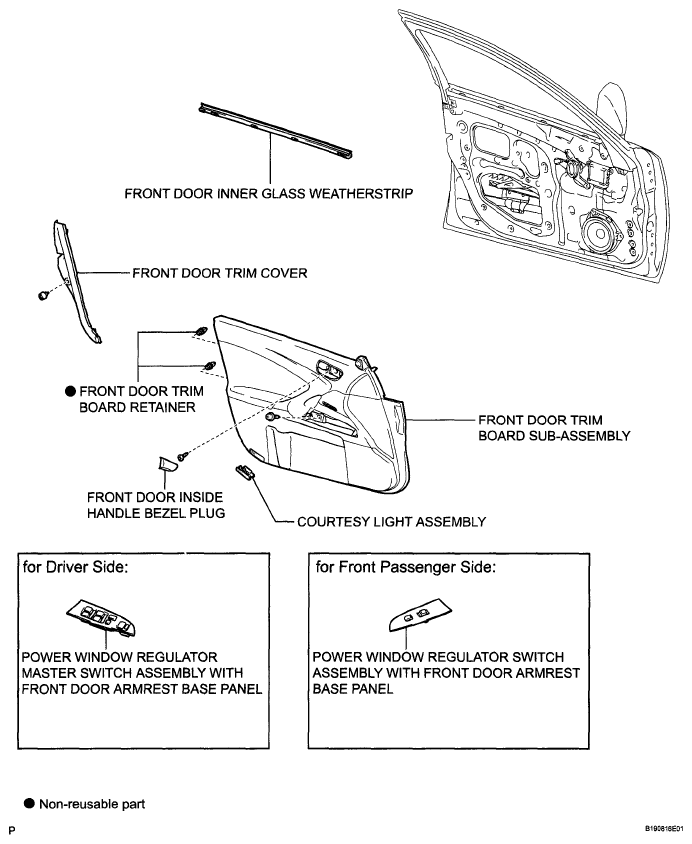

Fig 1: Identifying Entry Lock And Unlock Switch Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

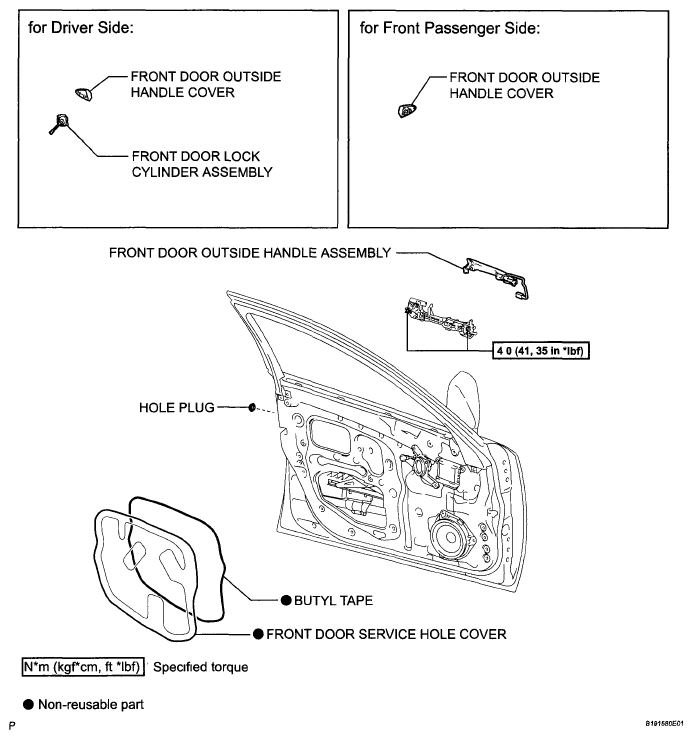

Fig 2: Entry Lock And Unlock Switch Replacement Components (2 Of 2) with Torque Specifications
