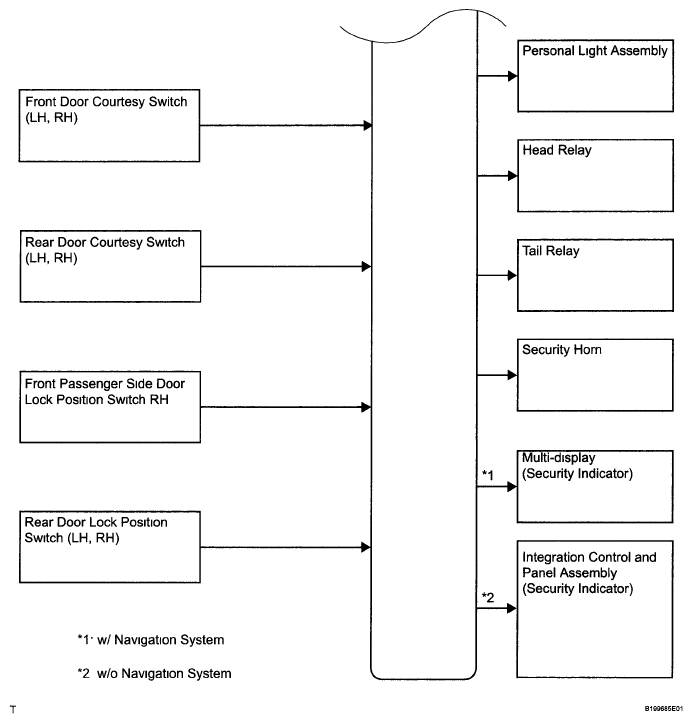

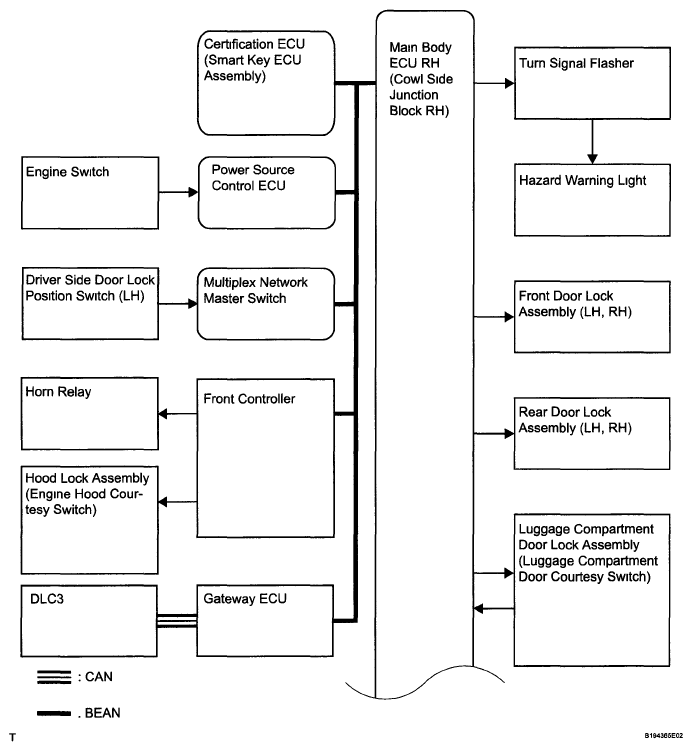

System Diagram
SIGNAL REFERENCE CHART
| Transmitting ECU (Transmitter) | Receiving ECU (Receiver) | Signal | Line |
|---|---|---|---|
| Power source control ECU | Main body ECU RH (cowl side junction block RH) | Engine switch signal | BEAN |
| Multiplex network master switch | Main body ECU RH (cowl side junction block RH) | Front door lock signal | BEAN |
| Front controller | Main body ECU RH (cowl side junction block RH) | Engine hood courtesy signal | BEAN |
| Main body ECU RH (cowl side junction block RH) | Front controller | Vehicle horn sound request | BEAN |
