Front Seatback Heater: Components

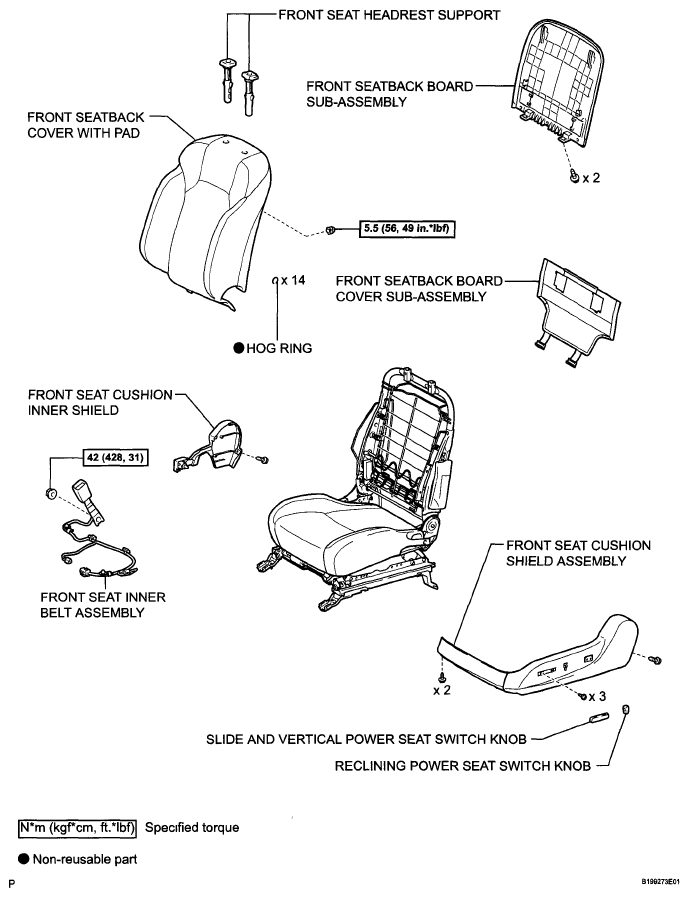

Fig 1: Front Seat Assembly Replacement Components (1 Of 5) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Front Seatback Heater Replacement Components (2 Of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Front Seatback Heater Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
