Rear Seat Assembly: Installation

INSTALL REAR SEATBACK ASSEMBLY
1. Place the seatback in the cabin.
  NOTE: Be careful not to damage the vehicle body.
2. Engage the 3 hooks.
3. Install the rear seatback assembly with the 4 bolts.
  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  Fig 1: Identifying Rear Seatback Assembly Bolts And Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Pass the seat belt through the rear seat shoulder belt guide RH
5. Engage the 2 claws and close the 2 caps of the rear seat shoulder belt guide RH.

  Fig 2: Locating Claws Of Rear Seat Shoulder Belt Guide RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Pass the seat belt through the rear seat shoulder belt guide LH.
7. Engage the 2 claws and close the 2 caps of the rear seat shoulder belt guide LH.
INSTALL REAR SEAT HEADREST ASSEMBLY RH
INSTALL REAR SEAT HEADREST ASSEMBLY LH
INSTALL REAR SEAT CUSHION ASSEMBLY
1. Engage the 2 rear hooks of the seat cushion to the child restraint seat anchor bracket
2. Engage the 2 front hooks of the seat cushion to the vehicle body
3. Confirm that the seat cushion is firmly installed
  NOTE: When installing the seat cushion, make sure the seat belt buckle is not under the seat cushion.

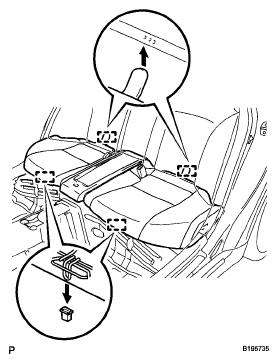

  Fig 4: Identifying Front Hooks Of Seat Cushion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
