Back Window Glass: Components

Fig 1: Identifying Back Window Glass Replacement Components (1 Of 3) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

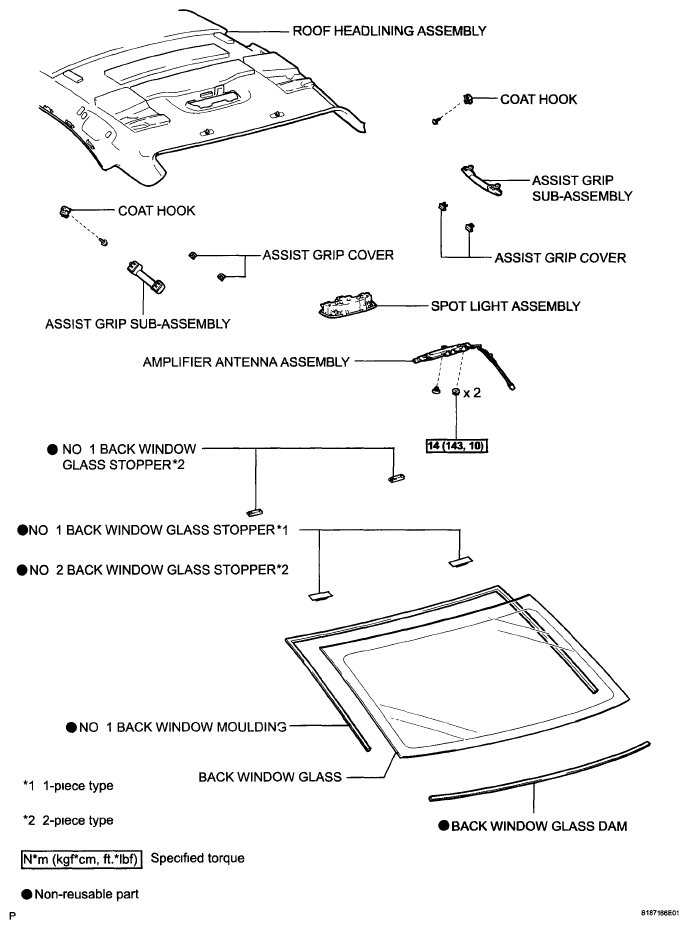

Fig 2: Identifying Back Window Glass Replacement Components (2 Of 3) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

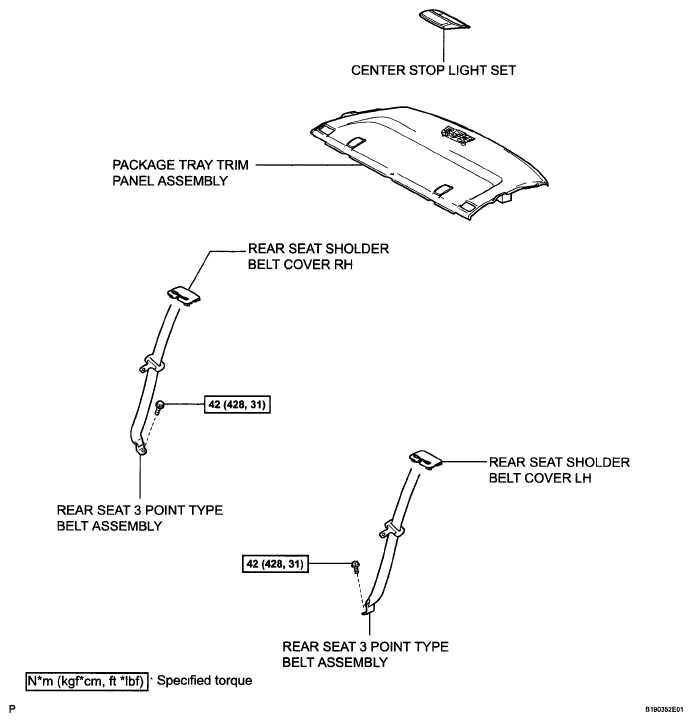

Fig 3: Back Window Glass Replacement Components (3 Of 3) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
