Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch: Wiring Diagram

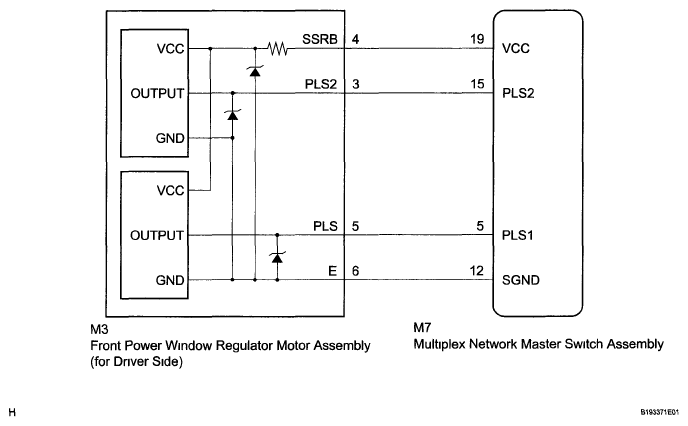

Fig 1: Front Power Window Regulator Motor Assembly (For Driver Side) Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
