Windshield Glass: Components

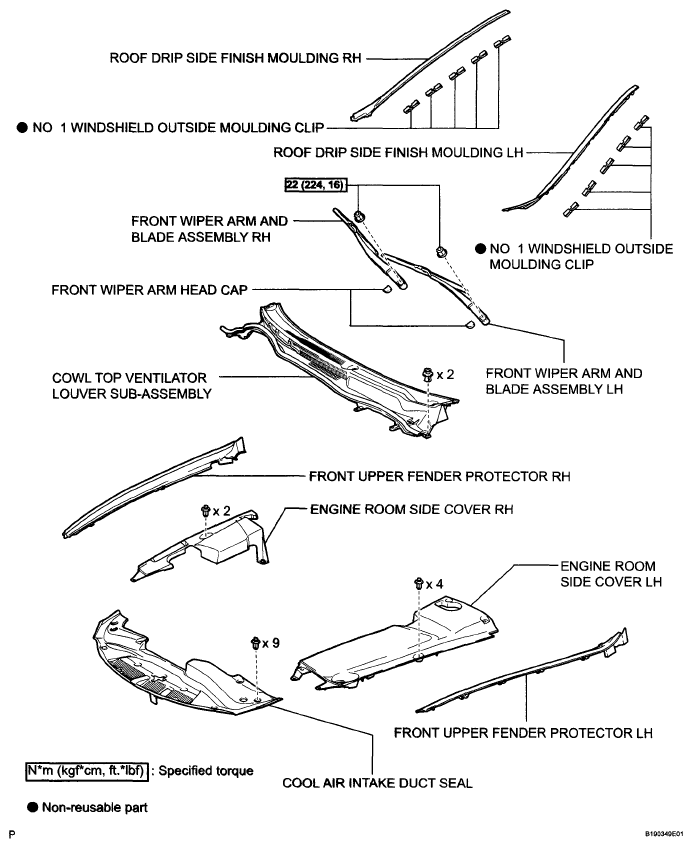

Fig 1: Identifying Windshield Glass Replacement Components (1 Of 3) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

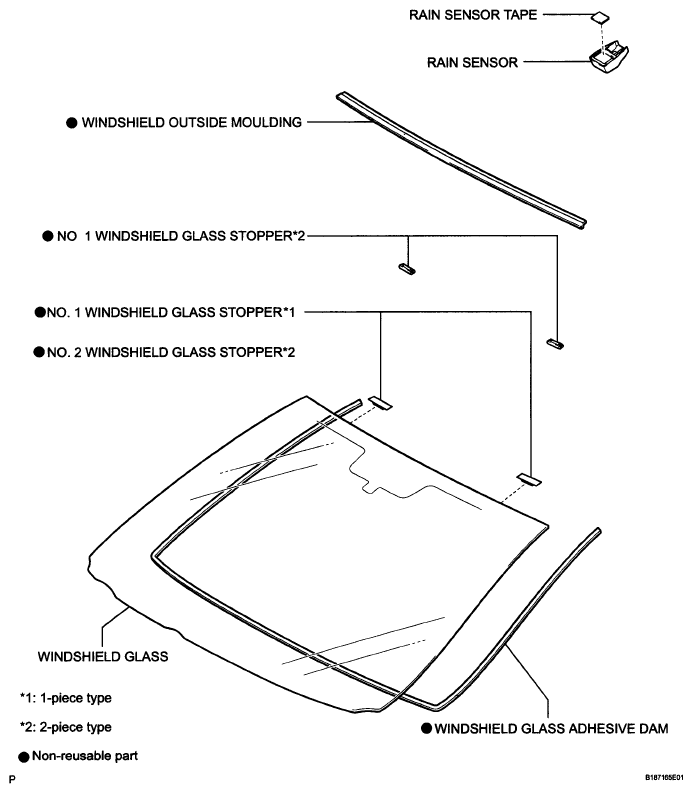

Fig 2: Identifying Windshield Glass Replacement Components (2 Of 3) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Windshield Glass Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
