Repair and Diagnosis
›
Brakes
›
Brakes Control Systems
›
Brake Control / Dynamic Control Systems
›
Brake Actuator
›
Components
Brake Actuator: Components
Fig 1: Identifying Brake Actuator Replacement Components (1 Of 4) With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

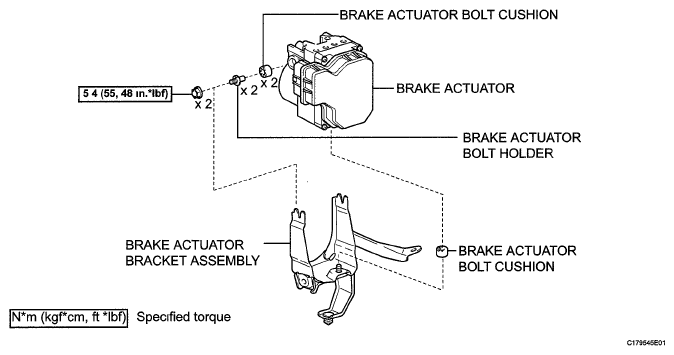

Fig 2: Brake Actuator Replacement Components (2 Of 4) With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

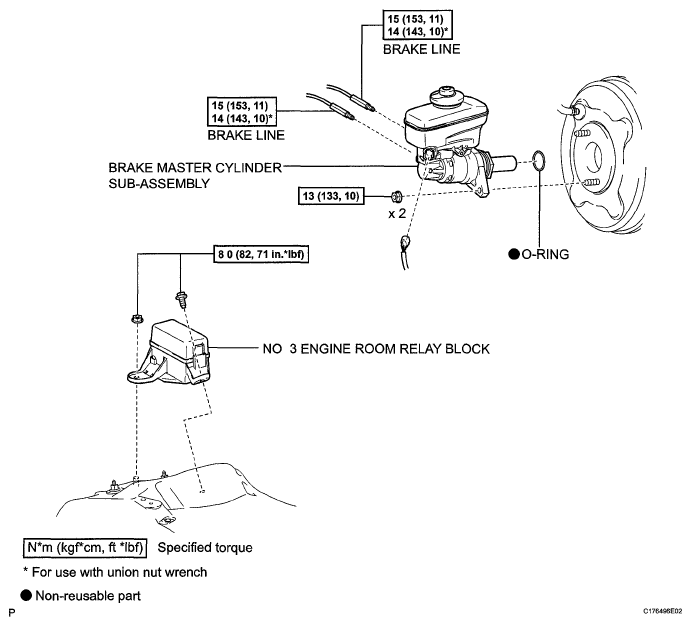

Fig 3: Brake Actuator Replacement Components (3 Of 4) With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

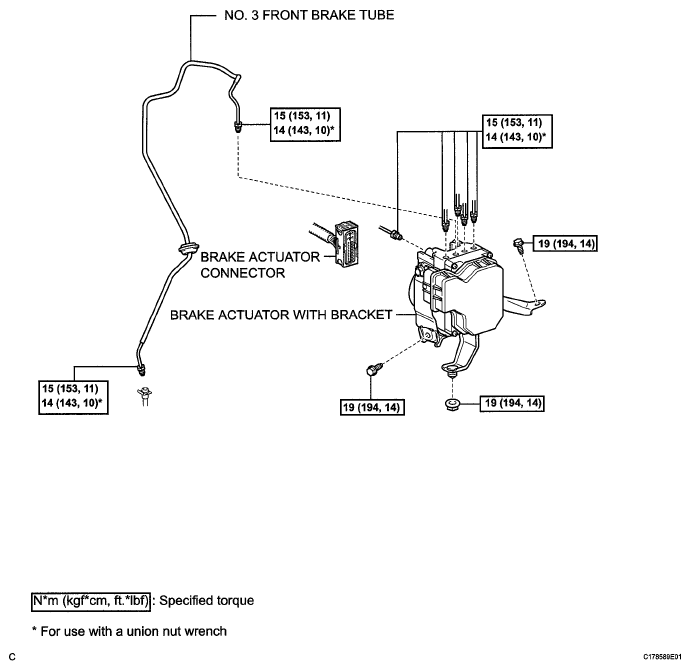

Fig 4: Brake Actuator Replacement Components (4 Of 4) With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
