Vehicle Stability Control System
›
DTC C1305/21 Solenoid Identification Circuit
›
Wiring Diagram
DTC C1305/21 Solenoid Identification Circuit: Wiring Diagram

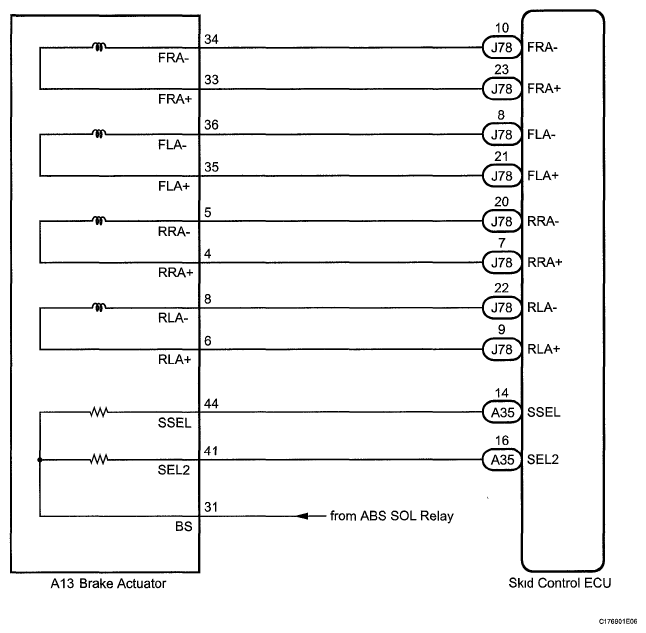

Fig 1: Solenoid Identification Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
