Vehicle Stability Control System
›
Parts Location
Parts Location

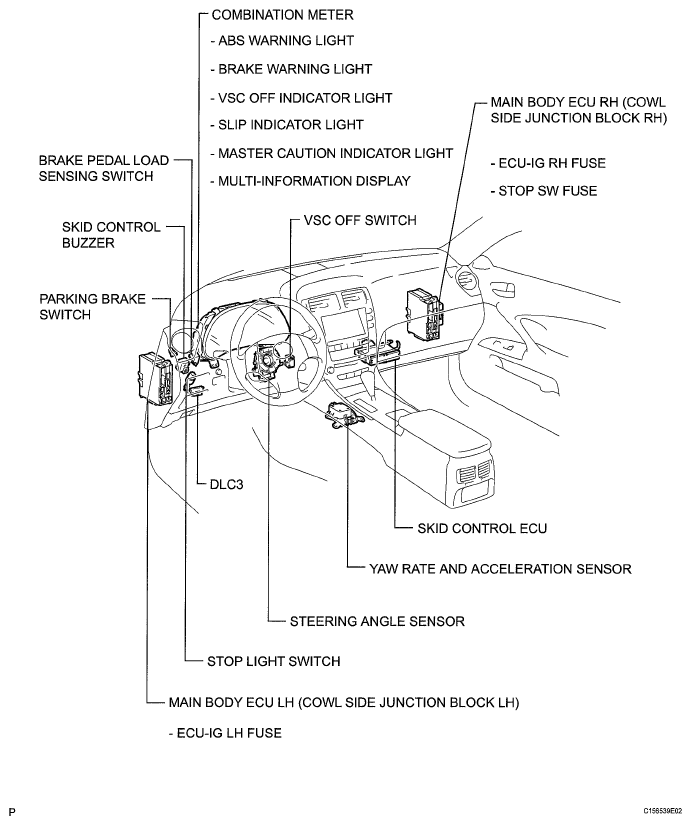

Fig 1: Identifying Brake Control / Dynamic Control Systems Parts Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

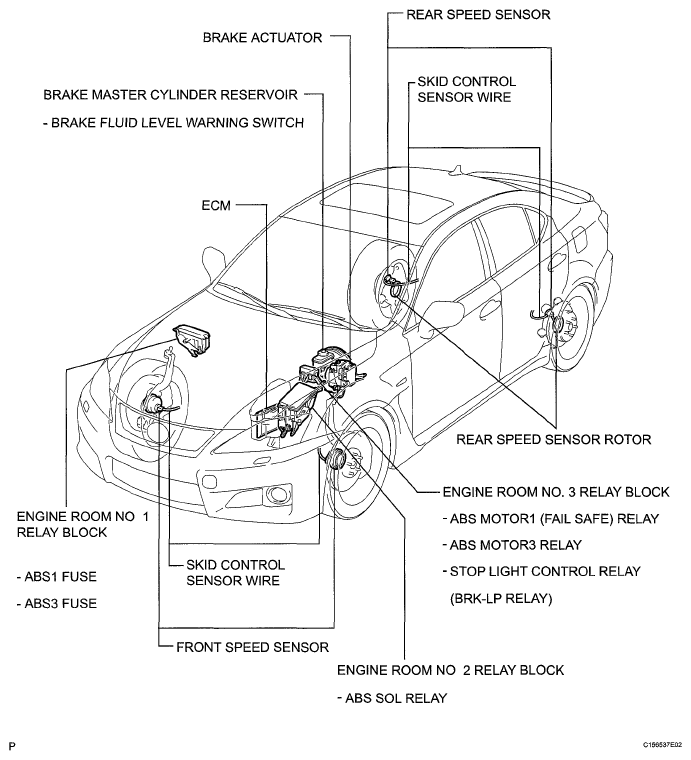

Fig 2: Identifying Brake Control / Dynamic Control Systems Parts Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
