Front Axle Hub: Installation

HINT

• Use the same procedure for the RH side and LH side
• The procedure listed below is for the LH side

1. INSTALL FRONT AXLE HUB SUB-ASSEMBLY
   1. Temporarily install the front axle hub sub-assembly and front disc brake dust cover with the 4 bolts.
      NOTE:

      • Do not allow any foreign matter such as dirt or dust to enter between the steering knuckle and front disc brake dust cover.
      • Do not allow any foreign matter such as dirt or dust to enter between the front disc brake dust cover and front axle hub sub-assembly.

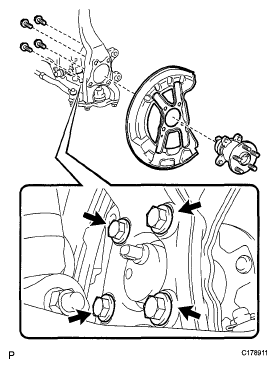

        Fig 1: Exploded View Of Front Disc Brake Dust Cover

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Using SST and a socket wrench (17 mm), fully tighten the 4 bolts
      Fig 2: Identifying Torque Wrench With Fulcrum Length

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09961-00950

      Torque: without SST

      69 N*m (700 kgf*cm, 51 ft.*lbf)

      with SST

      51 N*m (517 kgf*cm, 37 ft.*lbf)

      NOTE:

      • Use a torque wrench with a fulcrum length of 425 mm (16.73 in.).
      • This torque value is effective when SST is parallel to the torque wrench.
2. INSPECT FRONT AXLE HUB BEARING LOOSENESS  (See ON-VEHICLE INSPECTION  )
3. INSPECT FRONT AXLE HUB RUNOUT  (See ON-VEHICLE INSPECTION  )
4. INSTALL FRONT DISC  (See INSTALLATION )
5. INSTALL FRONT DISC BRAKE CYLINDER ASSEMBLY  (See INSTALLATION )
6. CONNECT FRONT SPEED SENSOR WIRE  (See INSTALLATION )
7. INSTALL FRONT WHEEL

   Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

8. CHECK FOR SPEED SENSOR SIGNAL

   See TEST MODE PROCEDURE .
