Front-Fog Light: Notes — 2008 Lexus IS F Service Manual ~ FixVault

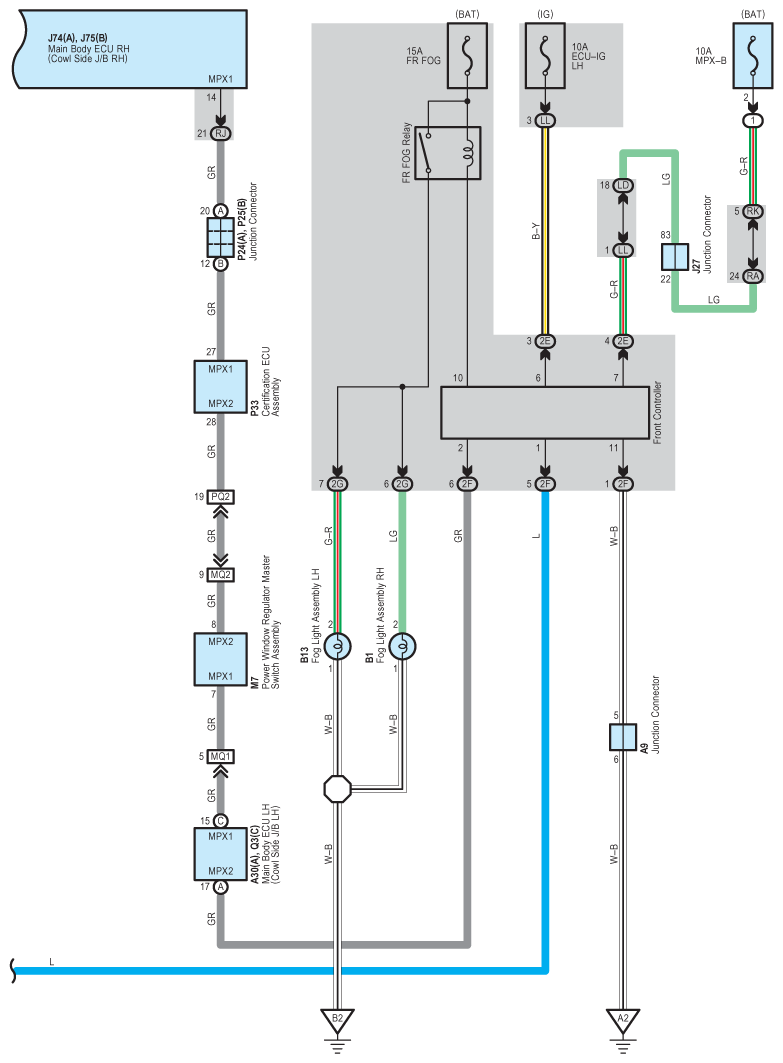

Fig 1: Front-Fog Light - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

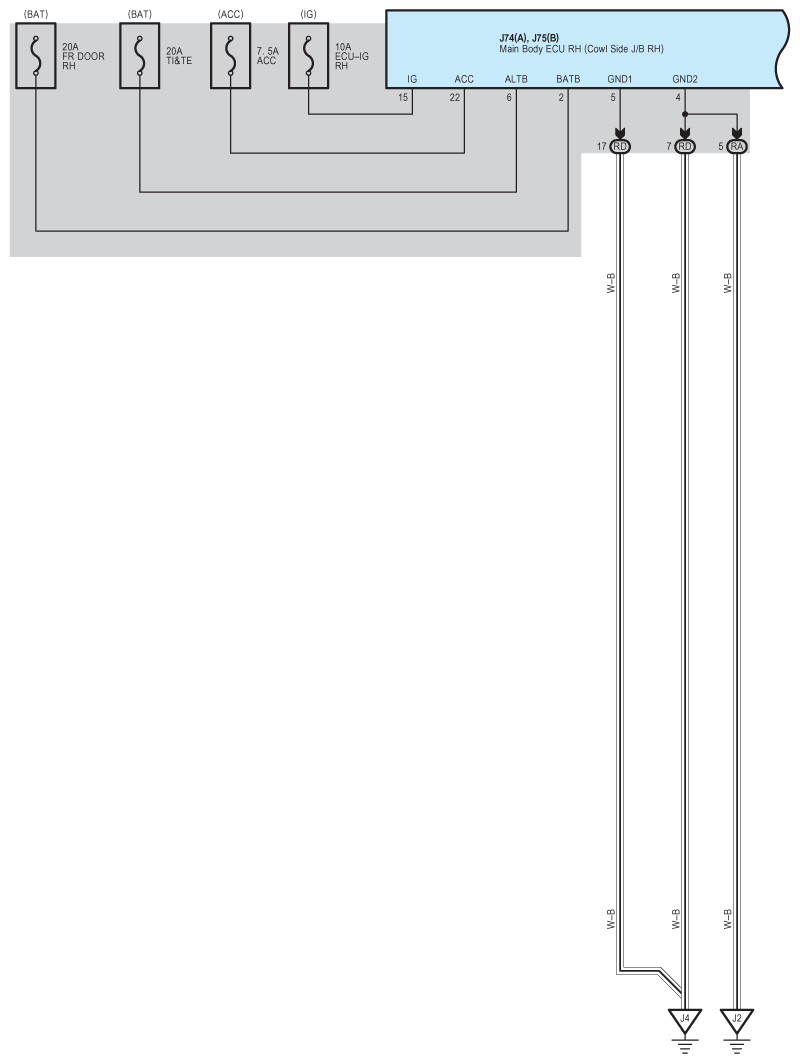

Fig 2: Front-Fog Light - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

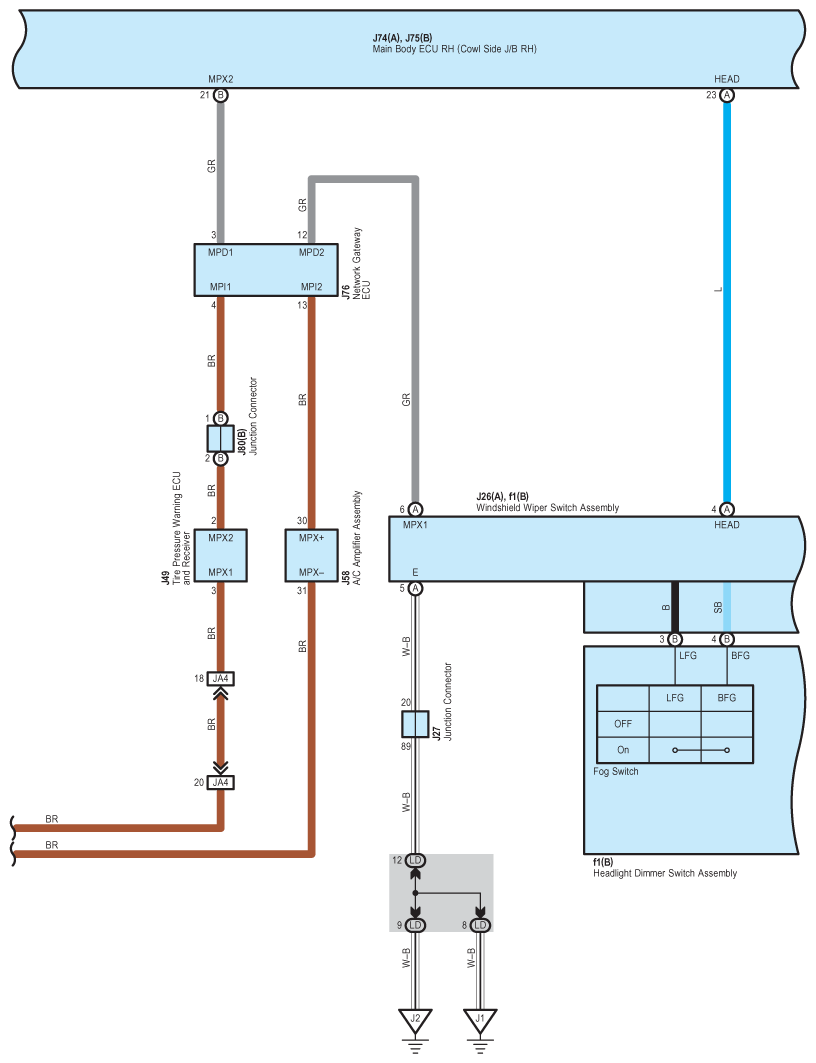

Fig 3: Front-Fog Light - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

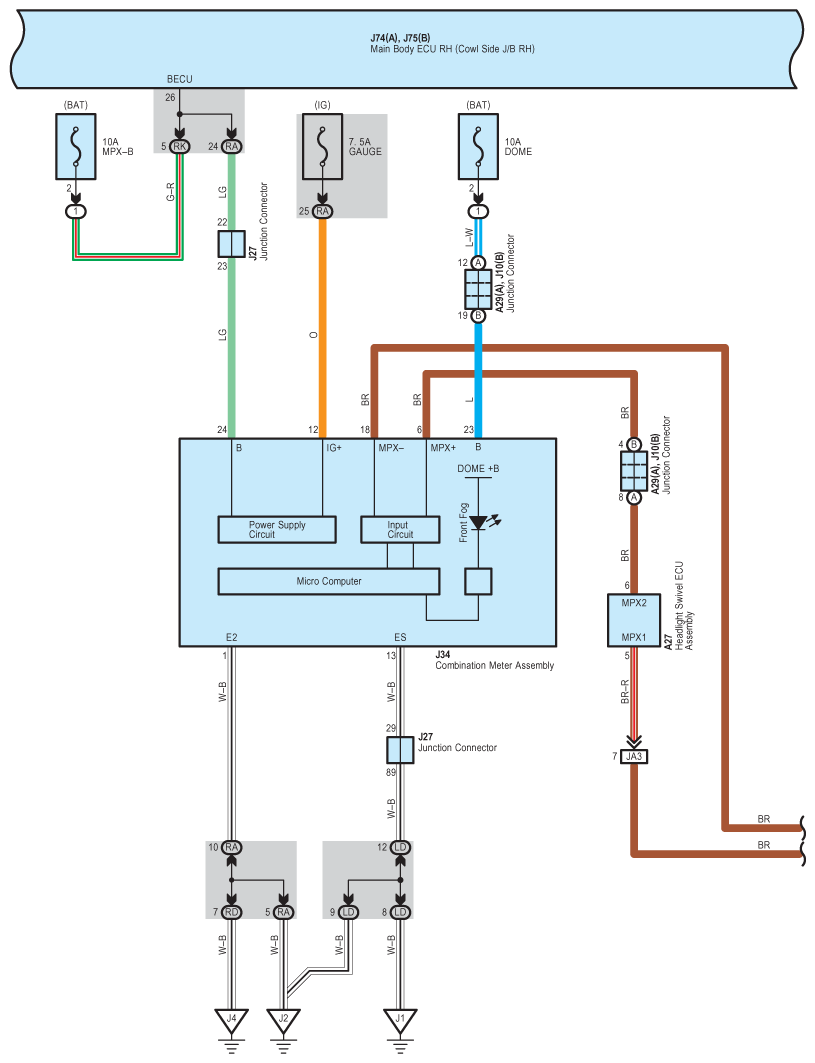

Fig 4: Front-Fog Light - Circuit Diagram (4 Of 5)

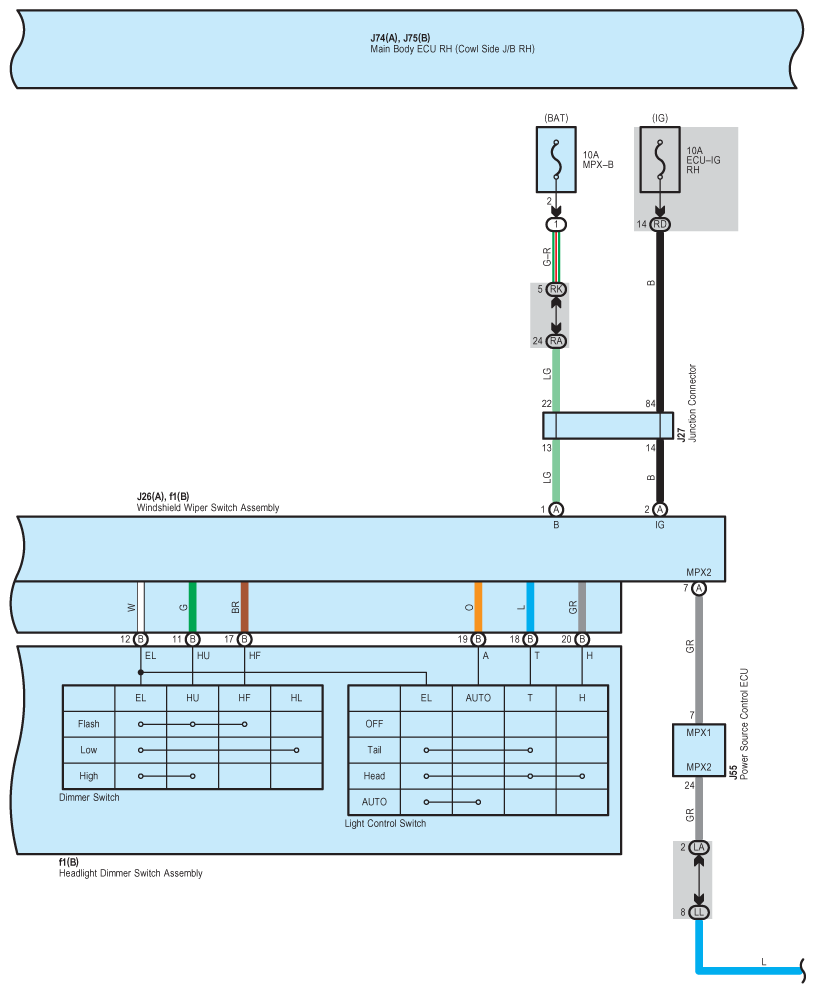

Fig 5: Front-Fog Light - Circuit Diagram (5 Of 5)
