OEM System Circuits: Illumination: Notes

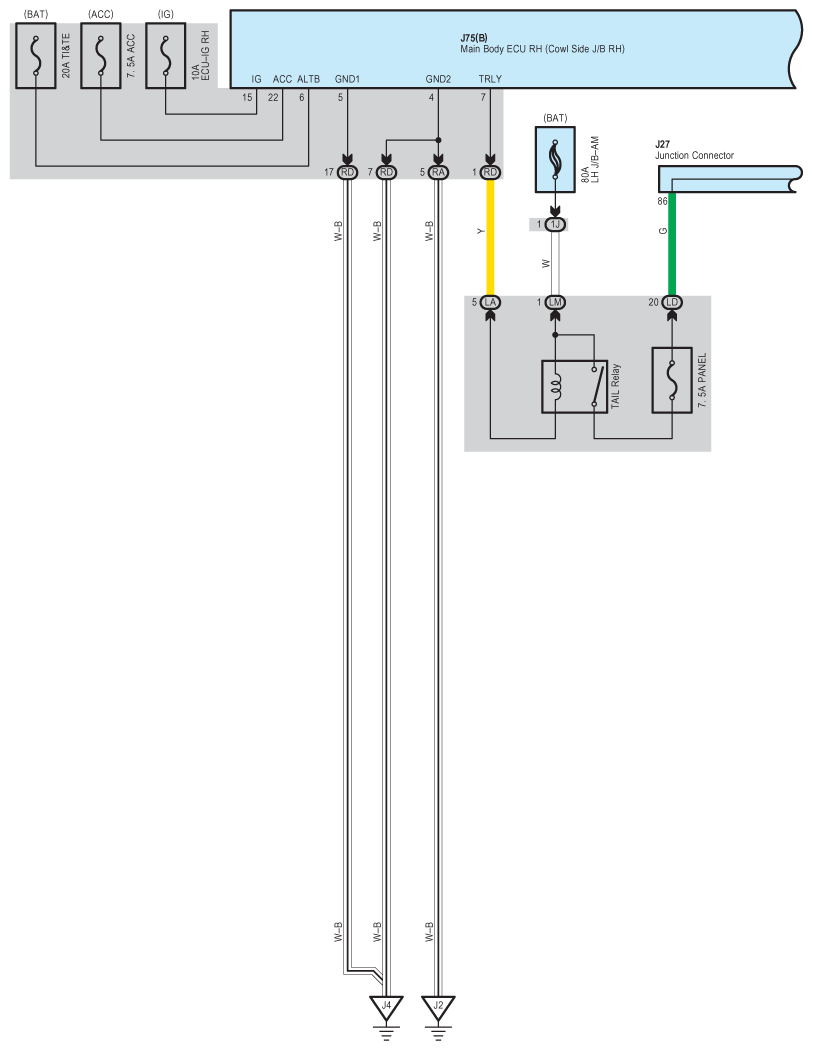

Fig 1: Illumination - Circuit Diagram (1 Of 8)

G07592262

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

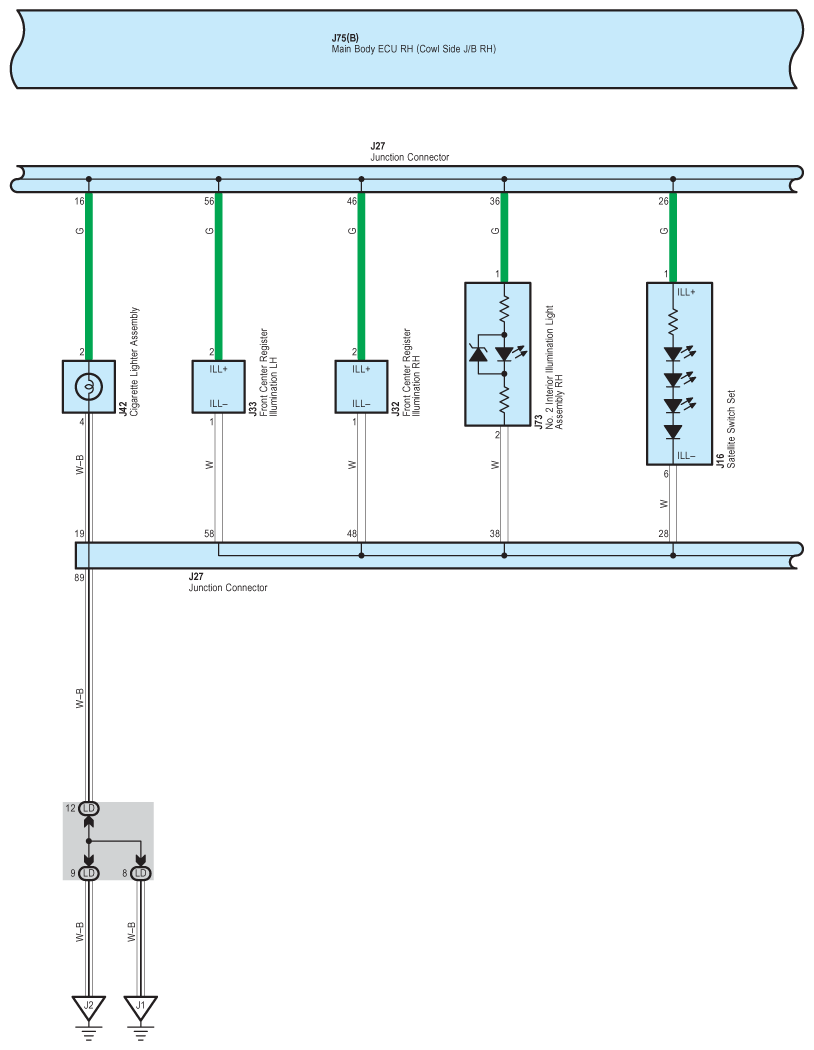

Fig 2: Illumination - Circuit Diagram (2 Of 8)

G07592263

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

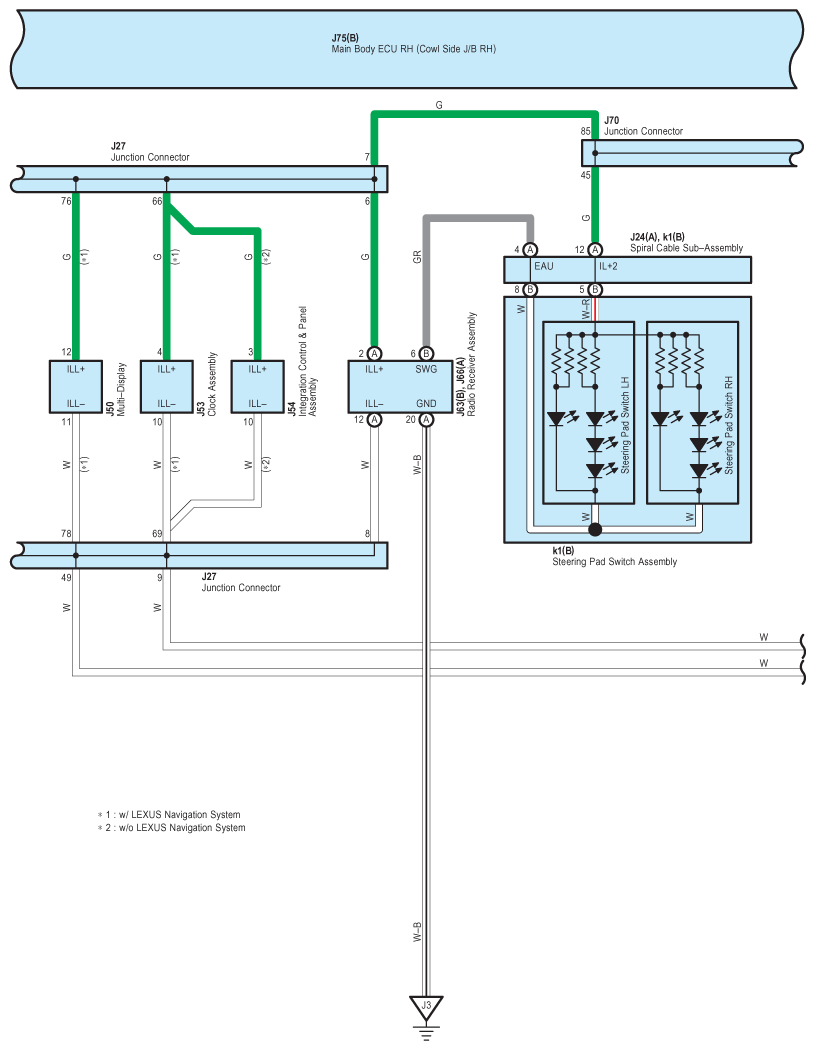

Fig 3: Illumination - Circuit Diagram (3 Of 8)

G07592264

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

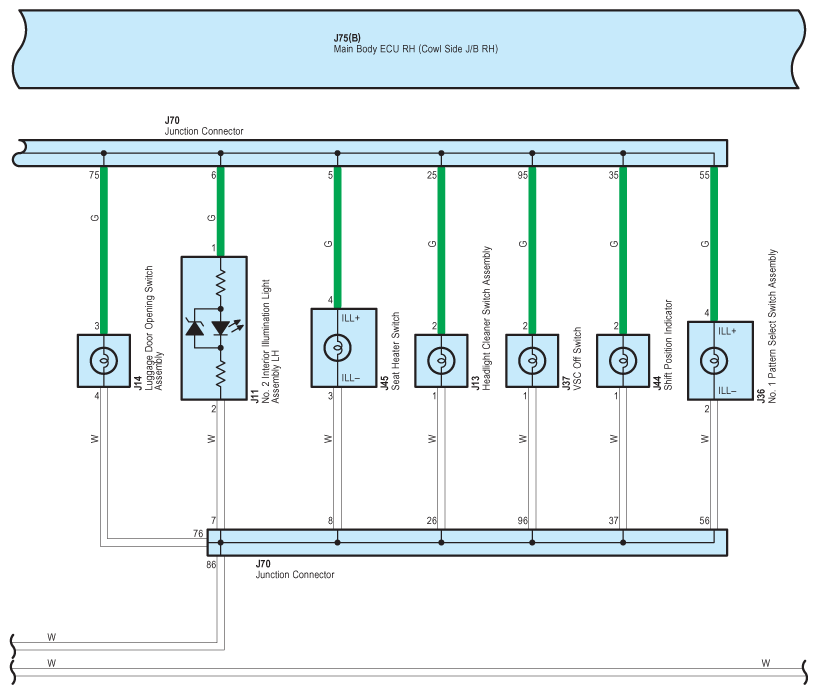

Fig 4: Illumination - Circuit Diagram (4 Of 8)

G07592265

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

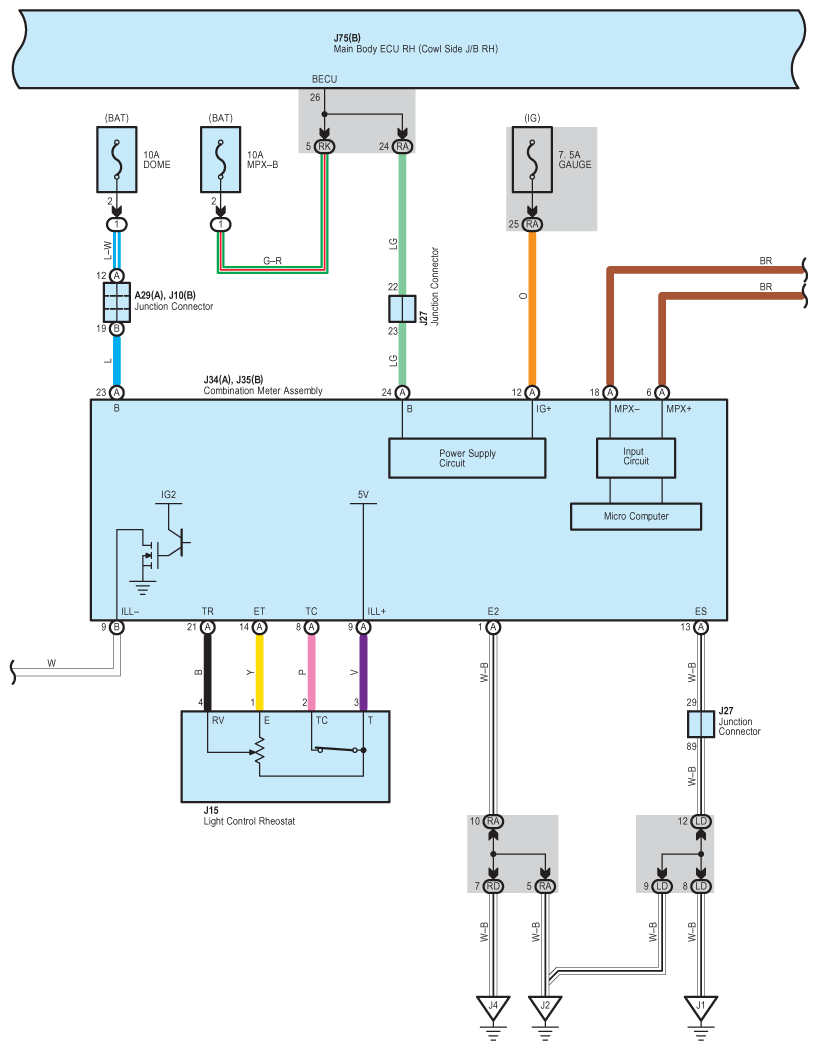

Fig 5: Illumination - Circuit Diagram (5 Of 8)

G07592266

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

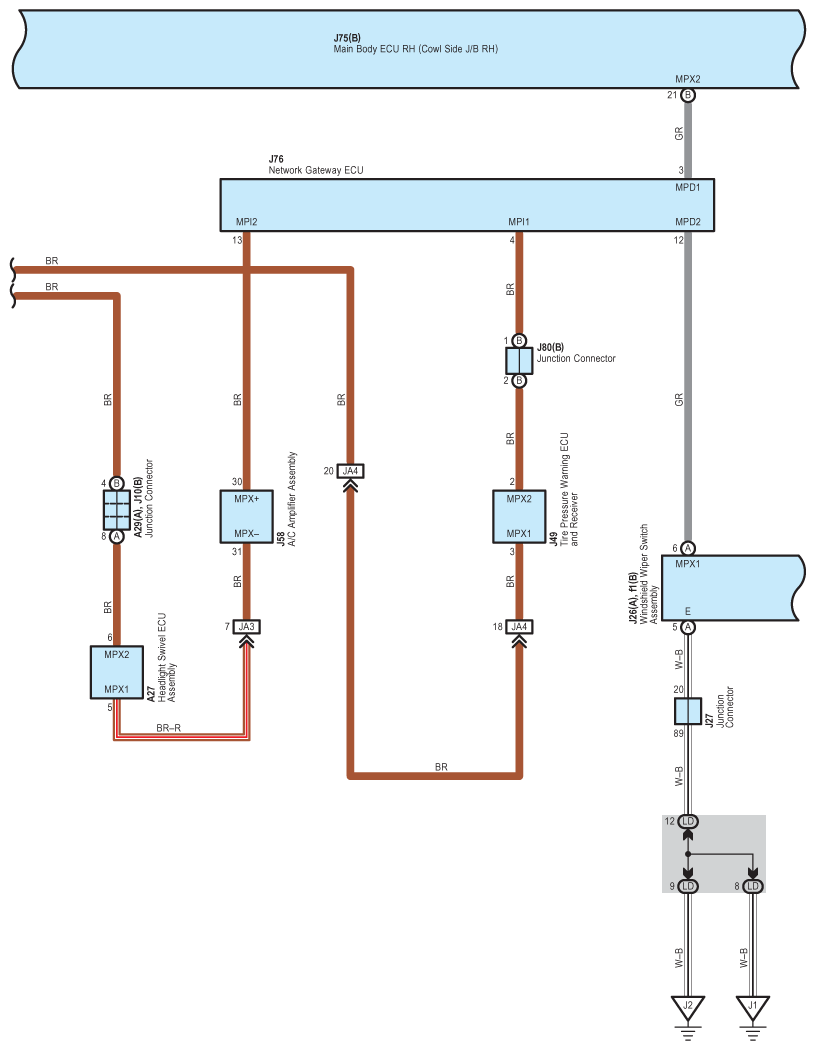

Fig 6: Illumination - Circuit Diagram (6 Of 8)

G07592267

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

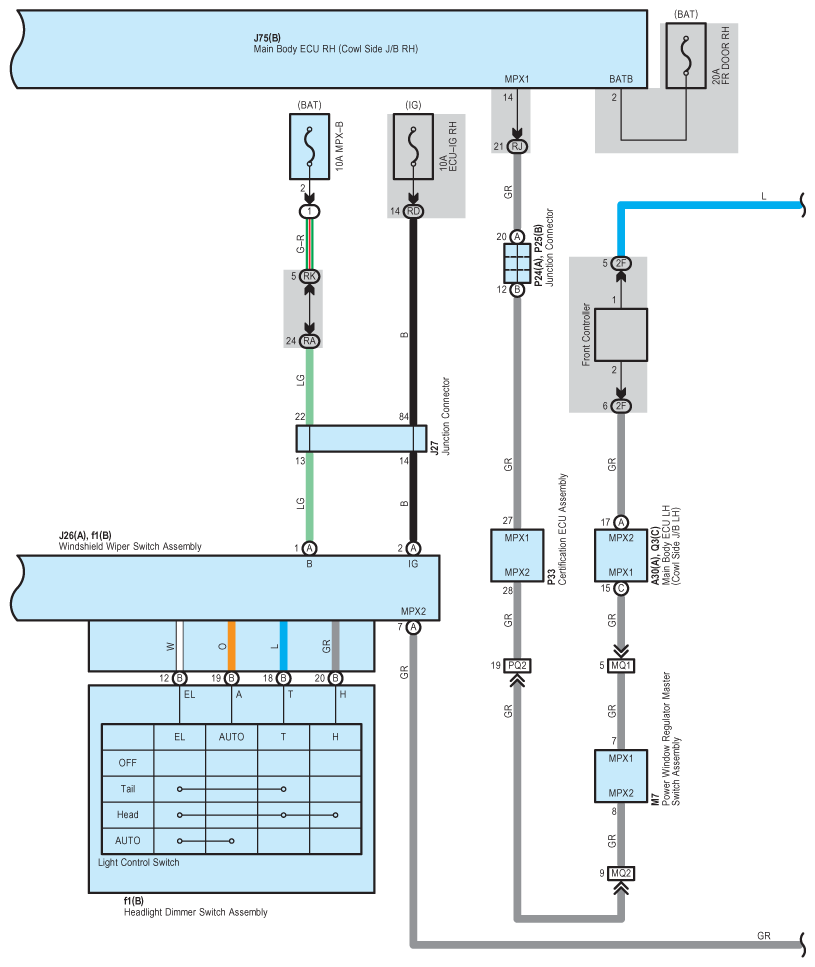

Fig 7: Illumination - Circuit Diagram (7 Of 8)

G07592268

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

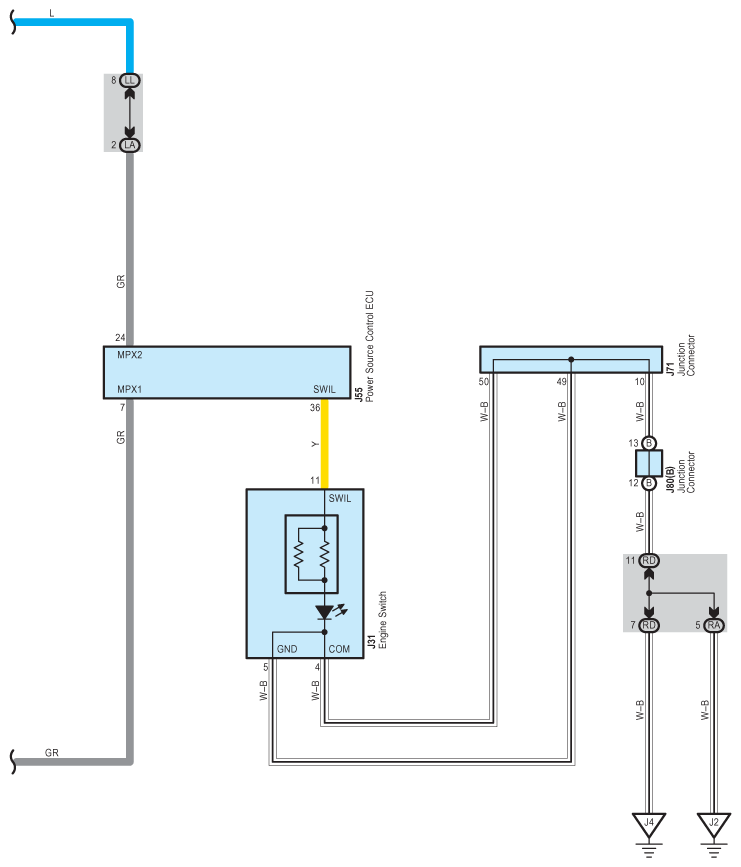

Fig 8: Illumination - Circuit Diagram (8 Of 8)

G07592269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
