Seat Beat Warning: Notes

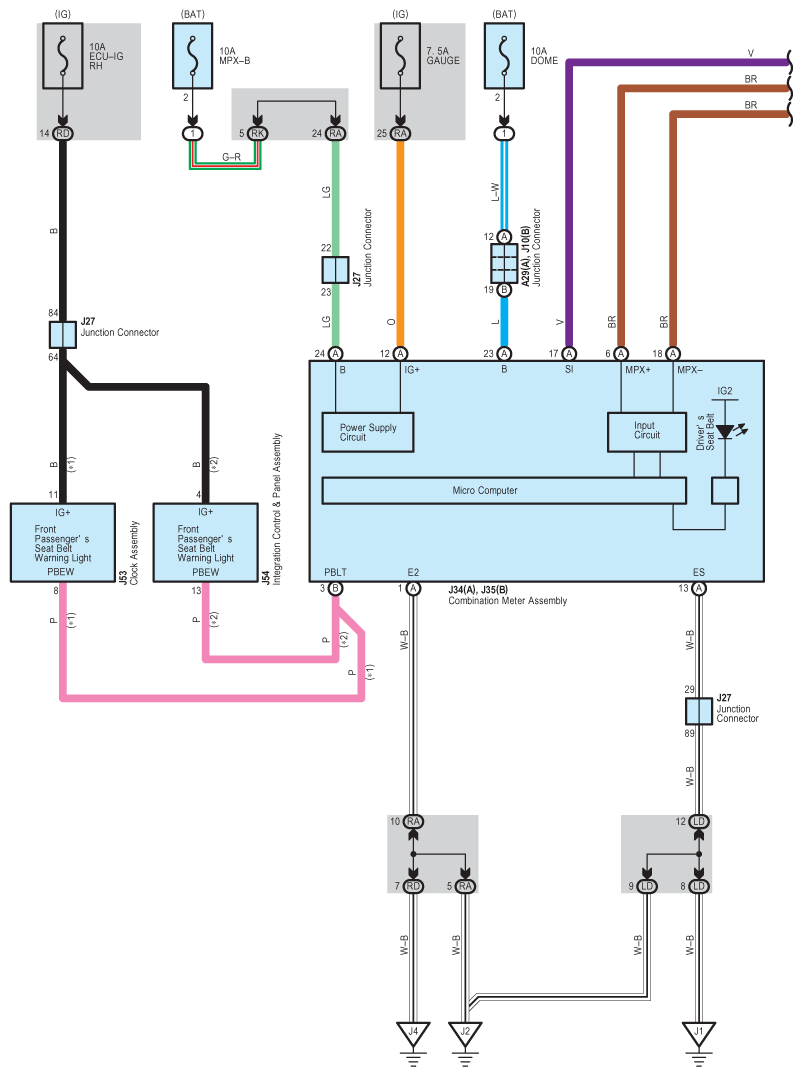

Fig 1: Seat Beat Warning - Circuit Diagram (1 Of 3)
G07592405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

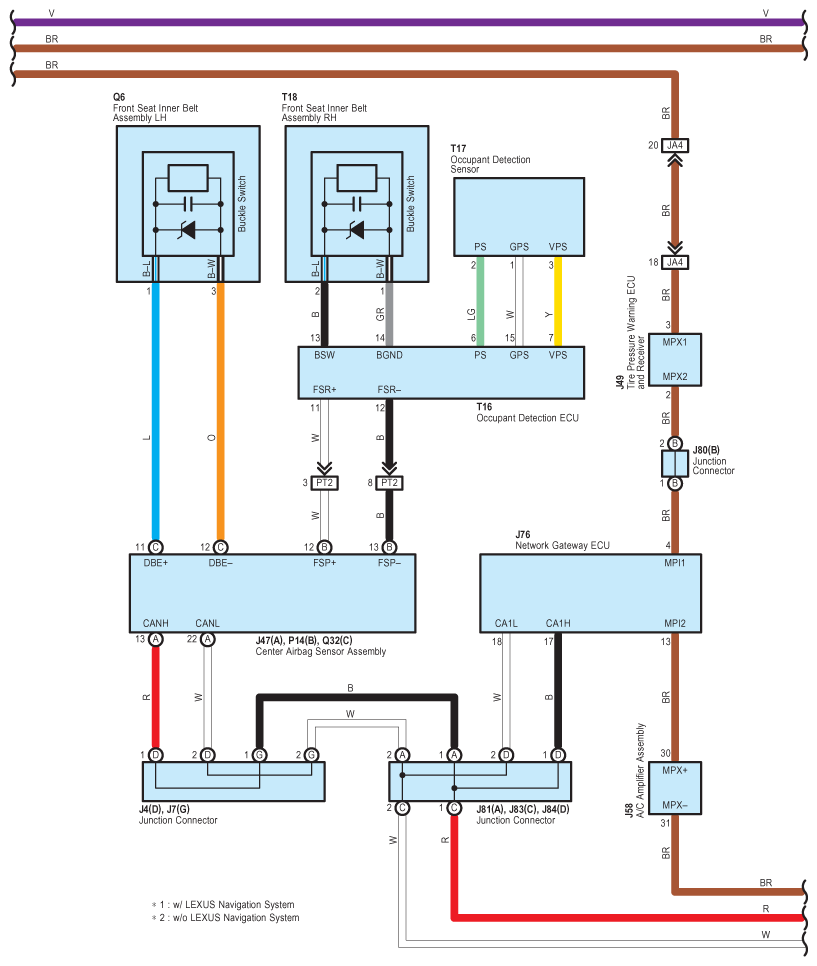

Fig 2: Seat Beat Warning - Circuit Diagram (2 Of 3)
G07592406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

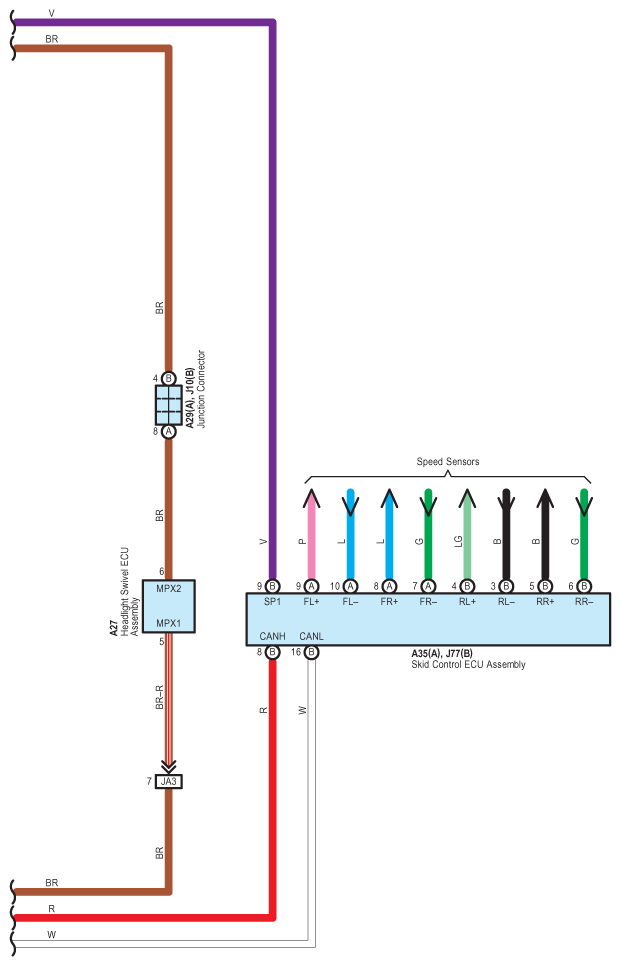

Fig 3: Seat Beat Warning - Circuit Diagram (3 Of 3)
G07592407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
