Repair and Diagnosis: Electrical: Gauges: Meter: Clock: Components

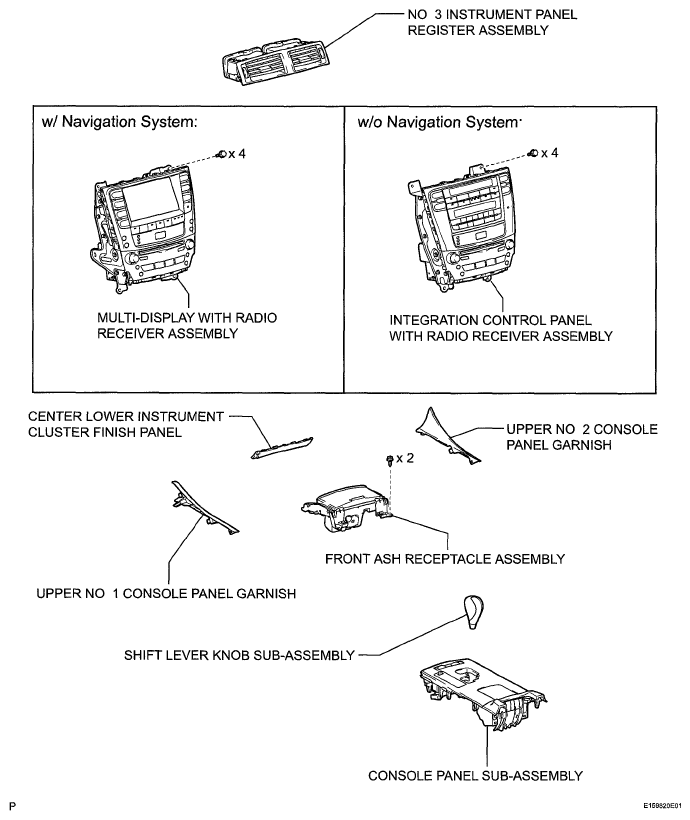

Fig 1: Identifying Clock Replacement Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

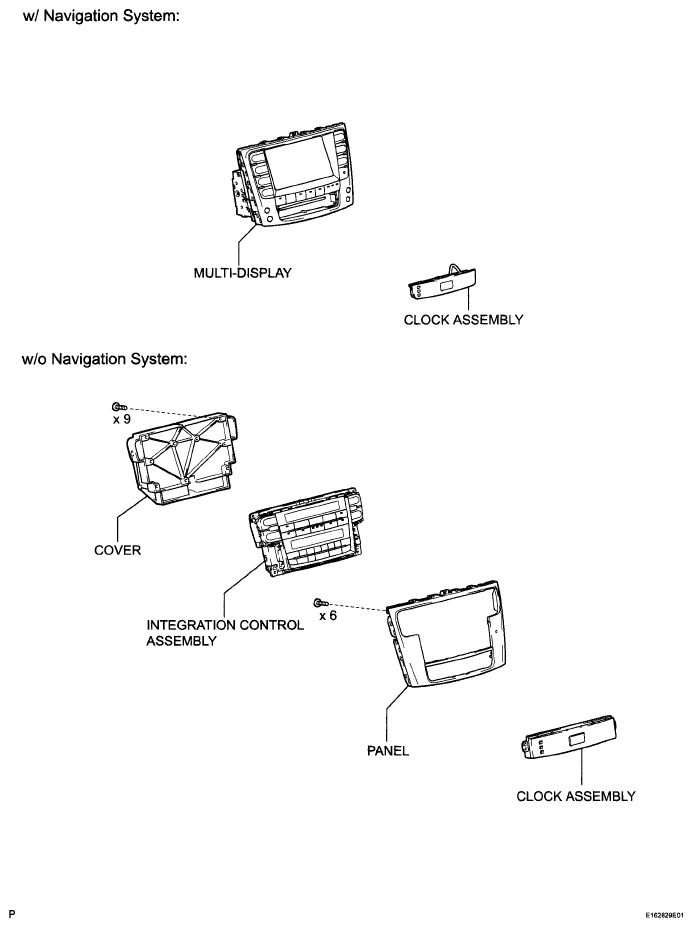

Fig 2: Identifying Clock Replacement Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

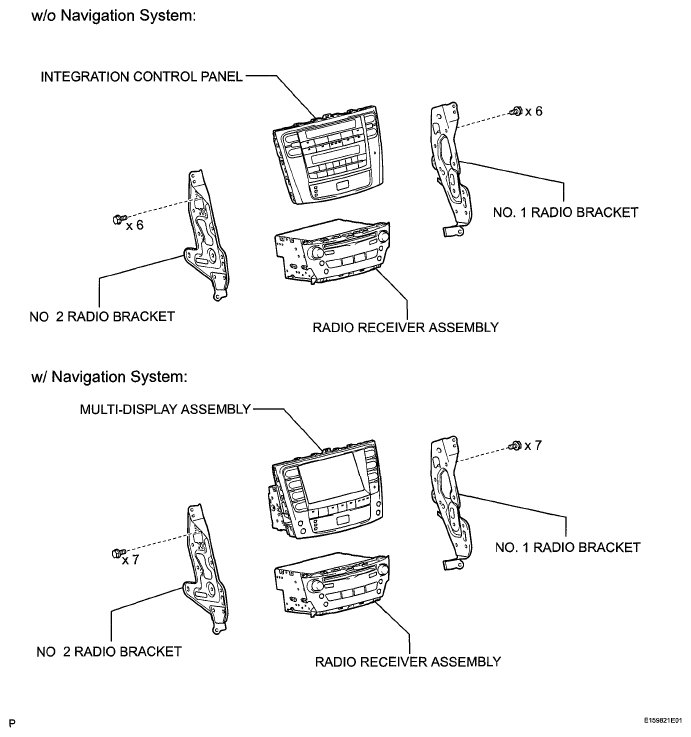

Fig 3: Identifying Clock Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
