Scavenging Pump: Components

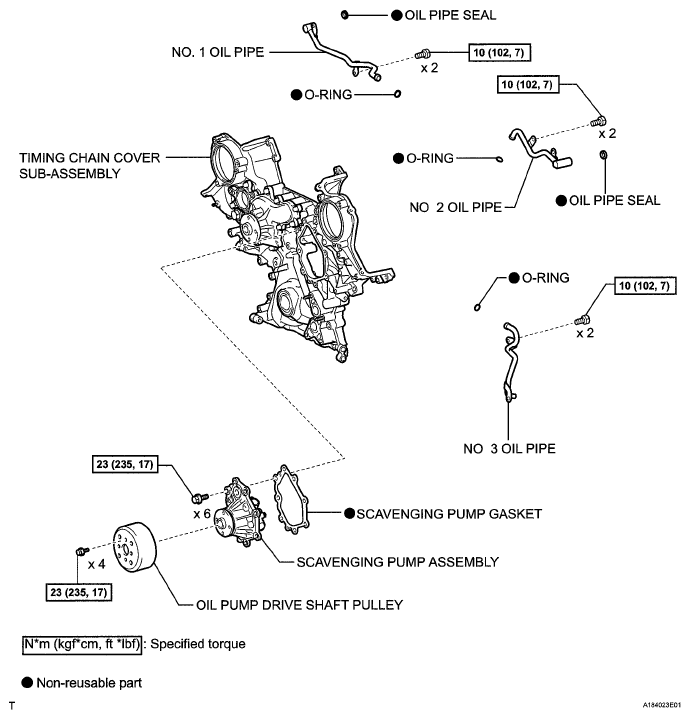

Fig 1: Scavenging Pump Replacement Components With Torque Specifications

G05750476

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
