Exhaust Pipe: Components

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications (1 Of 2)
G05750256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

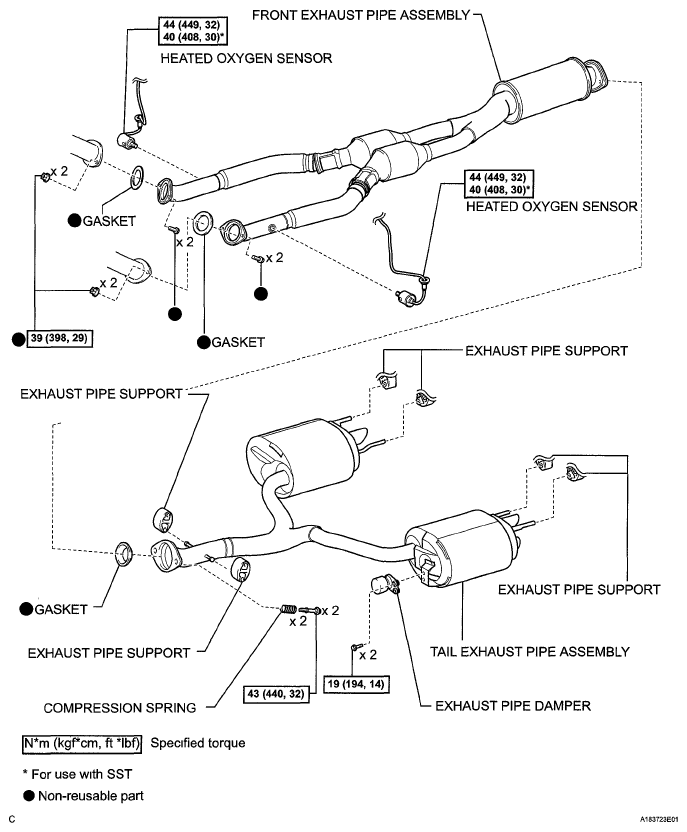

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications (2 Of 2)
G05750257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
