Camshaft Timing Control Motor
›
Components
Camshaft Timing Control Motor: Components

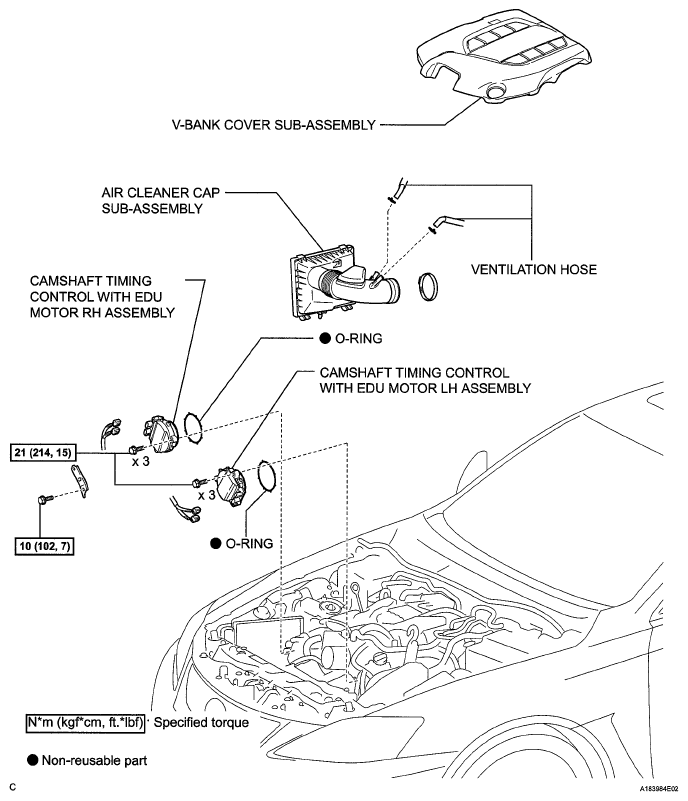

Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
