Engine Control System - System & Component Testing, R & I: ECM: Components

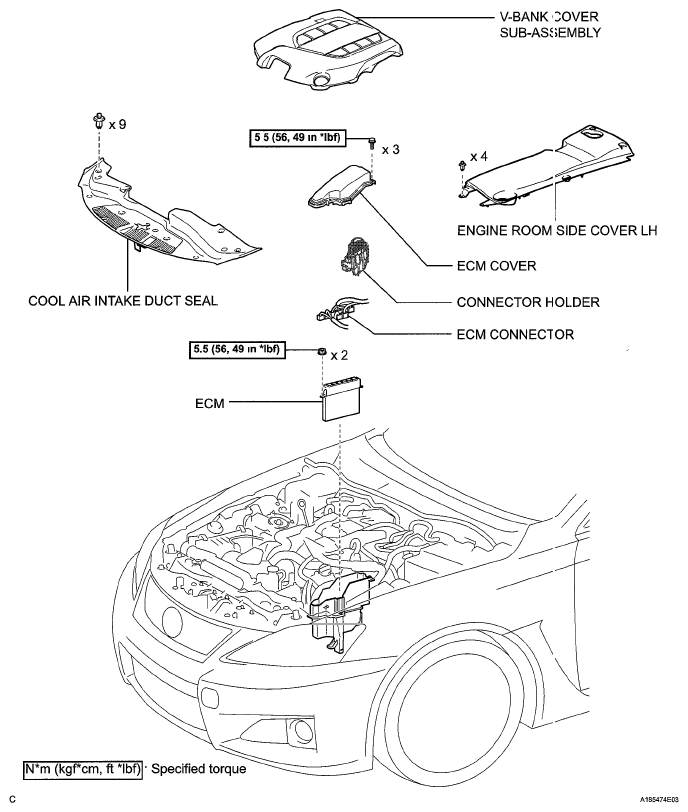

Fig 1: ECM Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
