Engine Control System - System & Component Testing, R & I
›
EVAP System
›
Wiring Diagram
EVAP System: Wiring Diagram

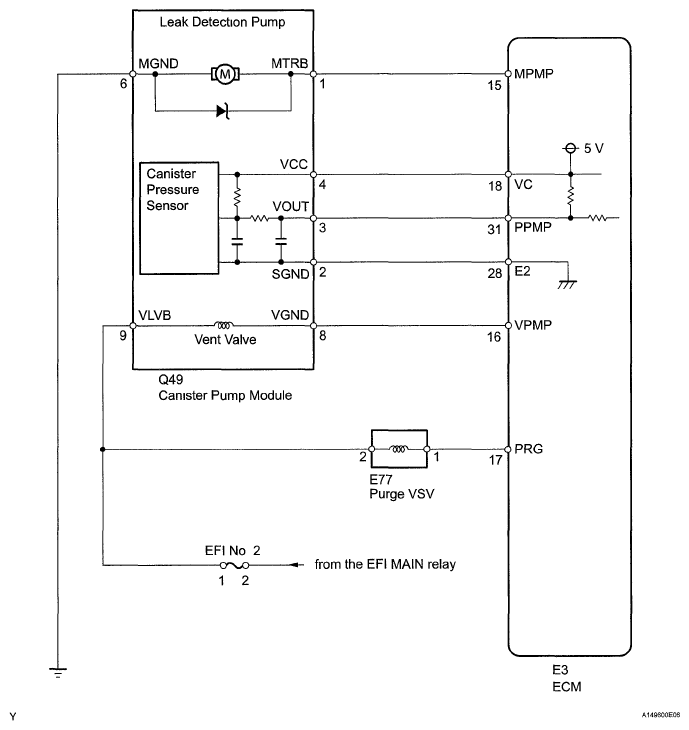

Fig 1: Canister Pump Module - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
