Engine Oil Temperature Sensor
›
Components
Engine Oil Temperature Sensor: Components

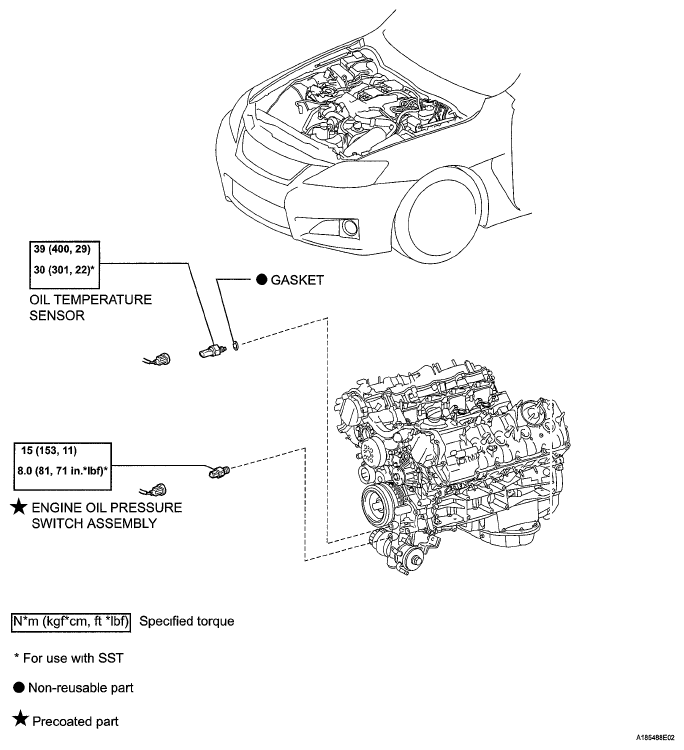

Fig 1: Engine Oil Temperature Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
