Engine Control System - System & Component Testing, R & I
›
Ignition System
›
System Diagram
System Diagram

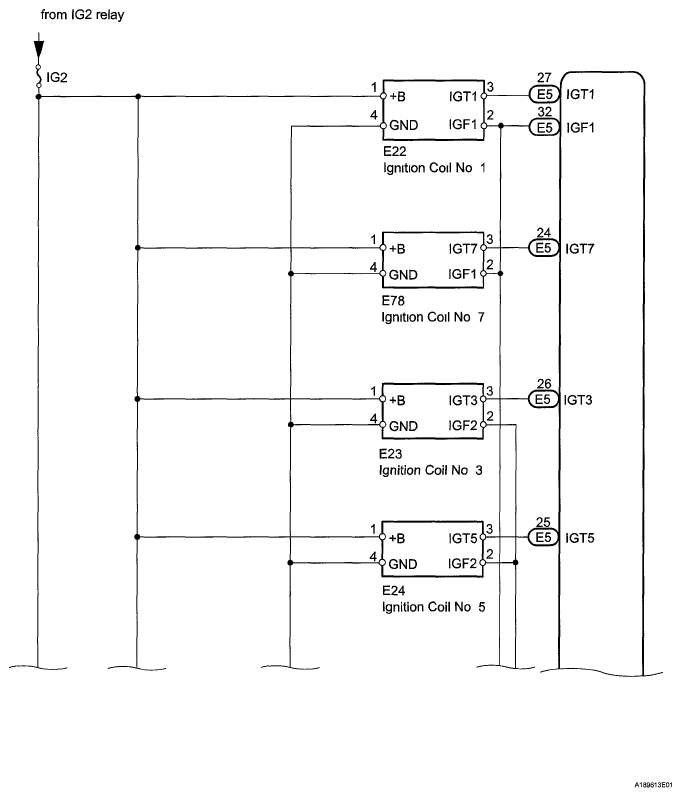

Fig 1: Ignition System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

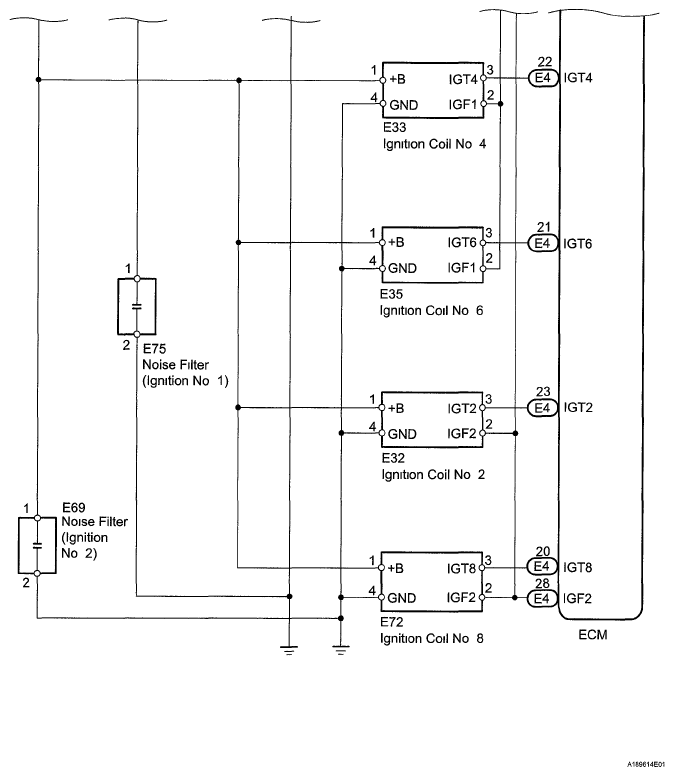

Fig 2: Ignition System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
