Home › Lexus › 2008 › IS F › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - System & Component Testing, R & I › Knock Sensor › Components

Knock Sensor: Components

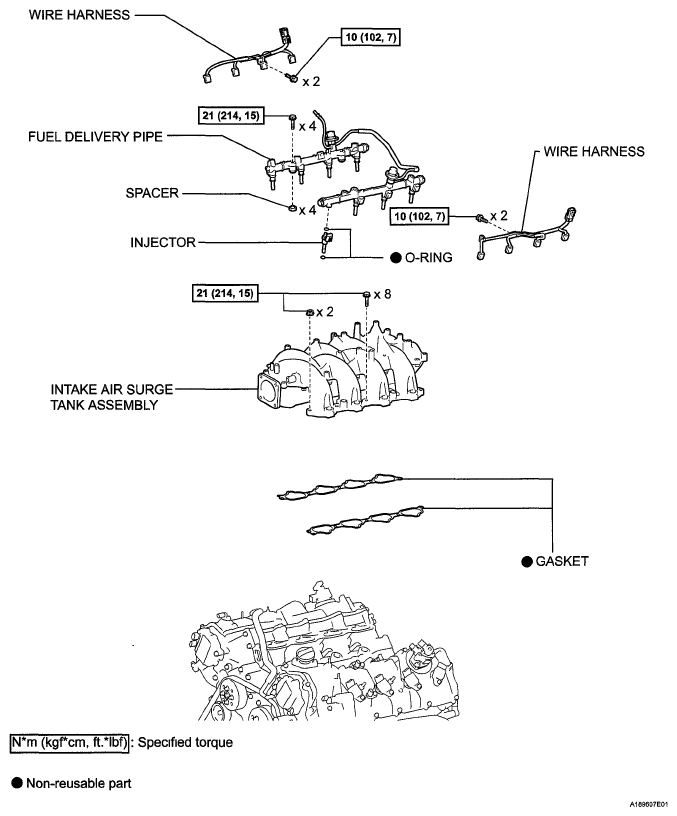

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (1 Of 2)
G05751973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

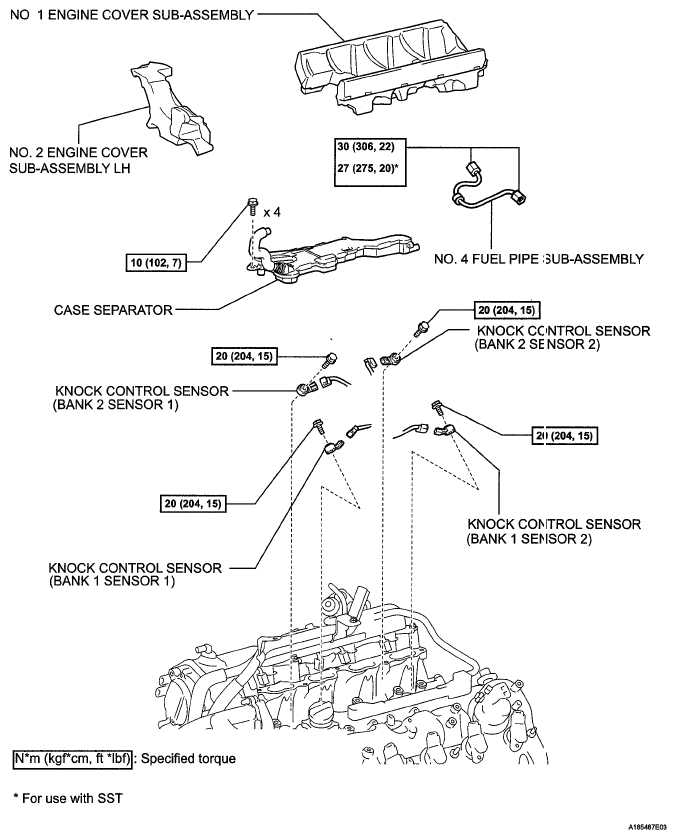

Fig 2: Lnock Sensor Replacement Components With Torque Specifications (2 Of 2)
G05751974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
