Fuel Pump
›
Components
Fuel Pump: Components
Fig 1: Identifying Fuel Pump Replacement Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

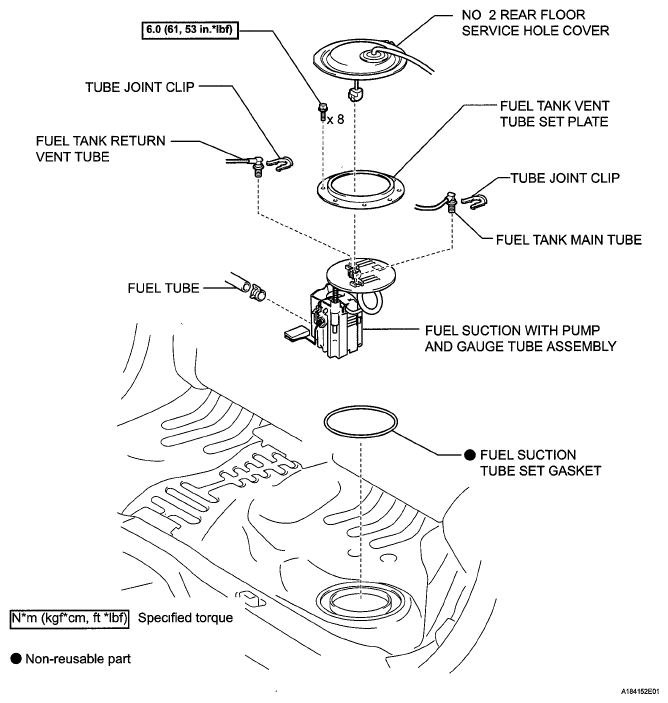

Fig 2: Fuel Pump Replacement Components With Torque Specification (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

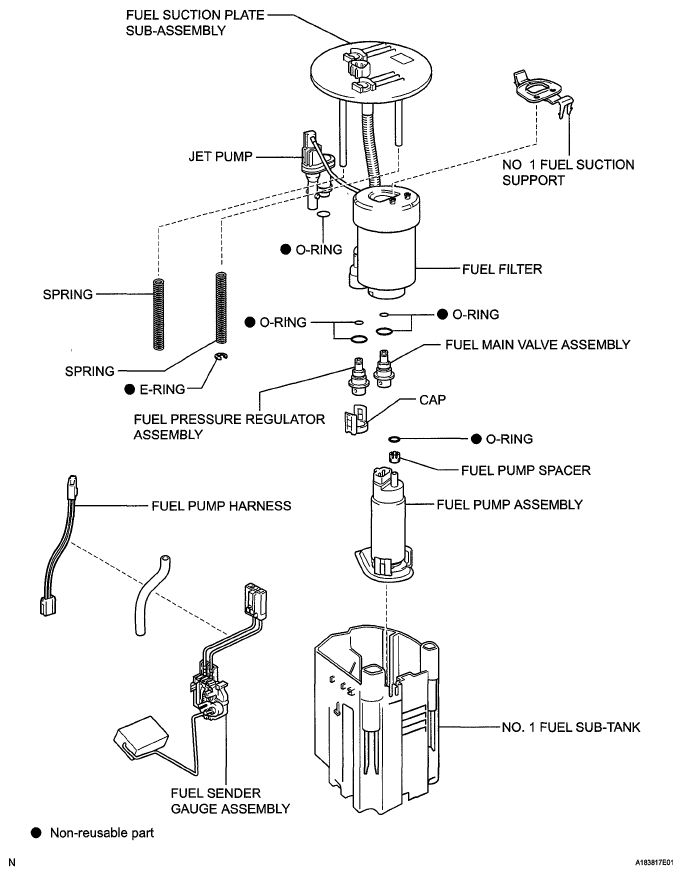

Fig 3: Identifying Fuel Pump Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
