System Diagram

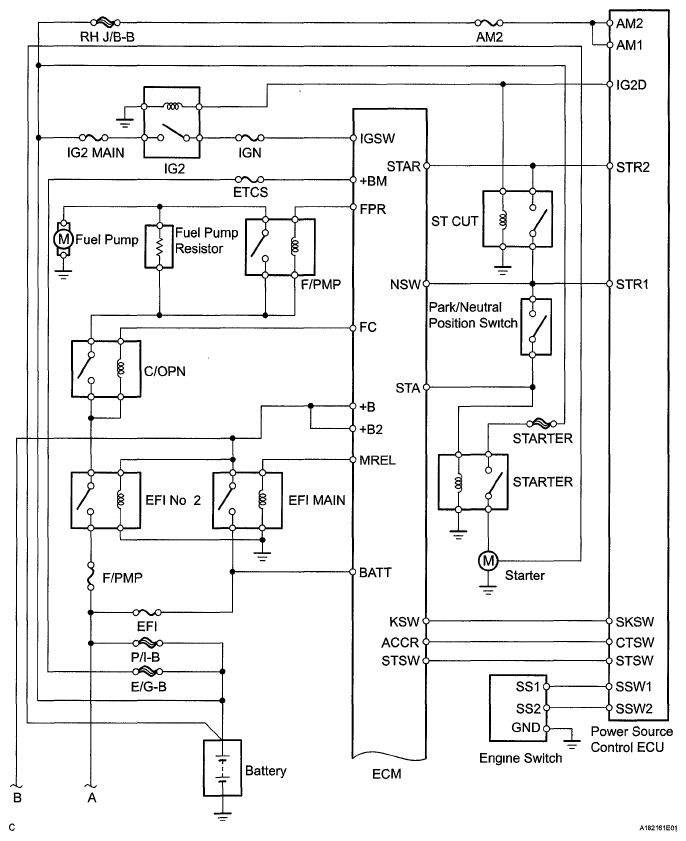

Fig 1: SFI - System Diagram (1 Of 7)
G05751396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

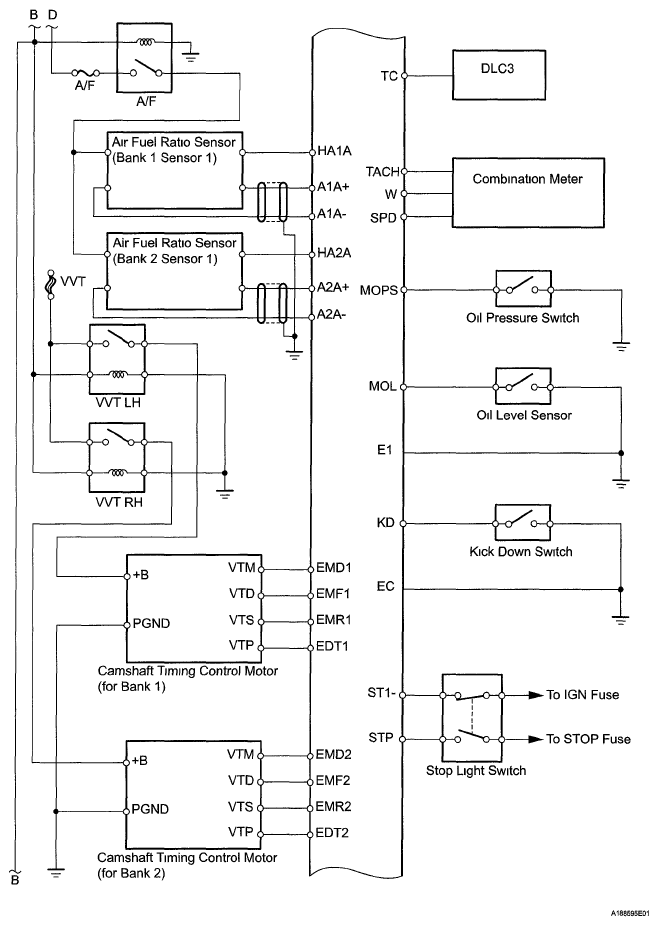

Fig 2: SFI - System Diagram (2 Of 7)
G05751397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

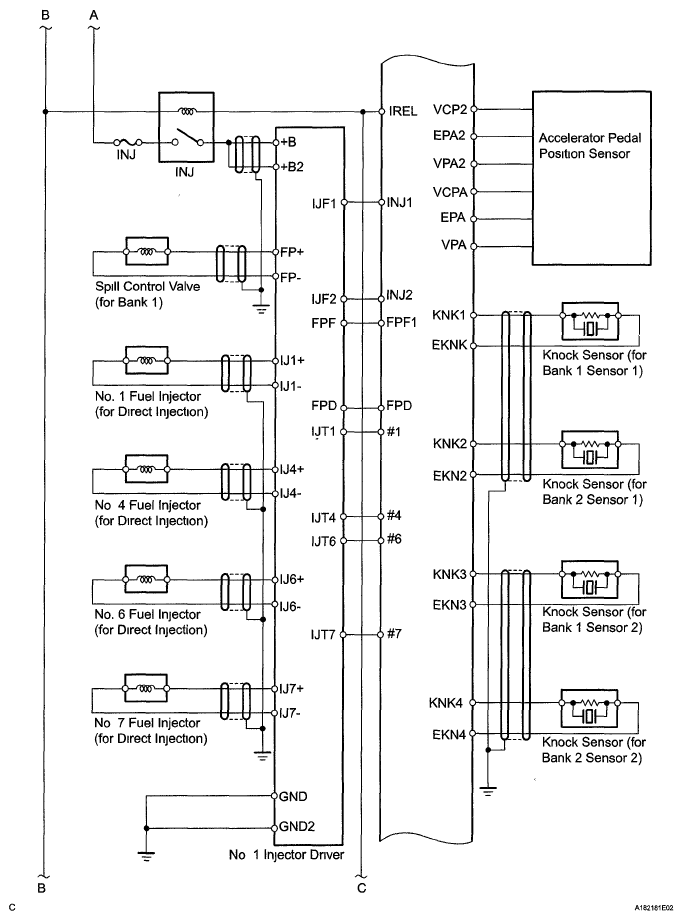

Fig 3: SFI - System Diagram (3 Of 7)
G05751398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

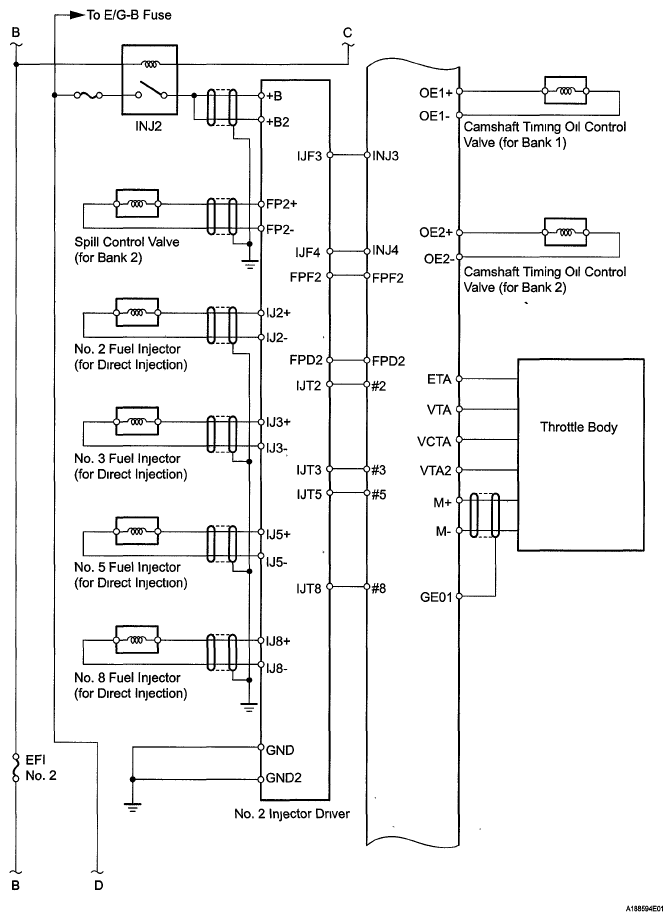

Fig 4: SFI - System Diagram (4 Of 7)
G05751399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

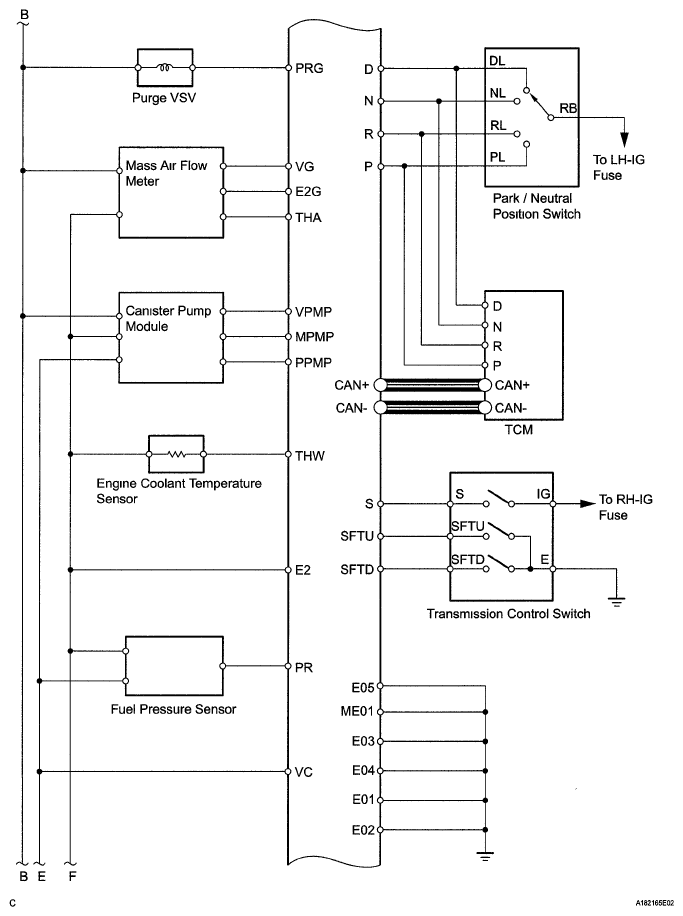

Fig 5: SFI - System Diagram (5 Of 7)
G05751400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

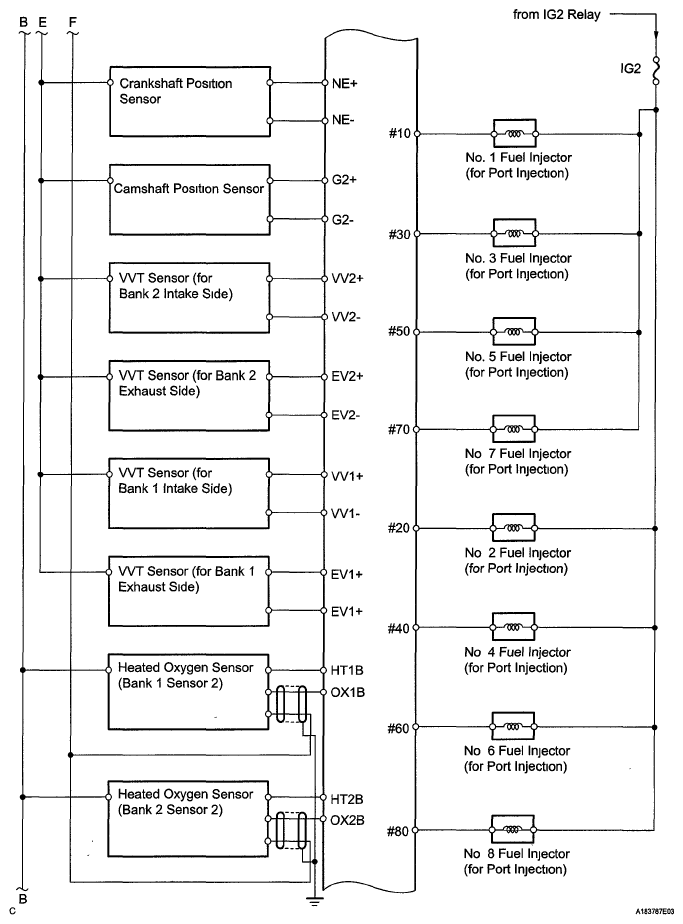

Fig 6: SFI - System Diagram (6 Of 7)
G05751401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

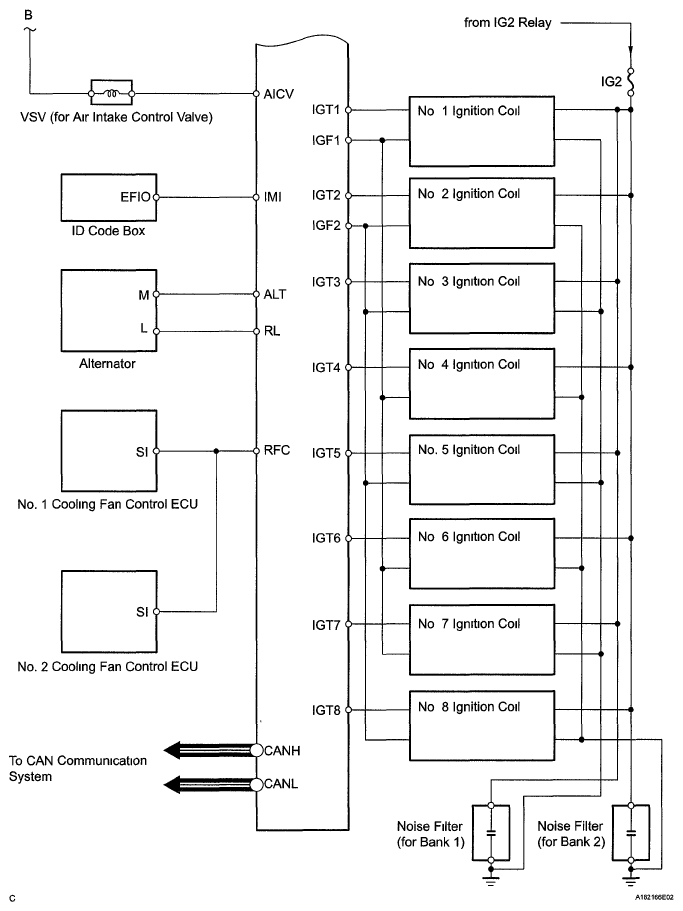

Fig 7: SFI - System Diagram (7 Of 7)
G05751402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
