Steering Knuckle: Components

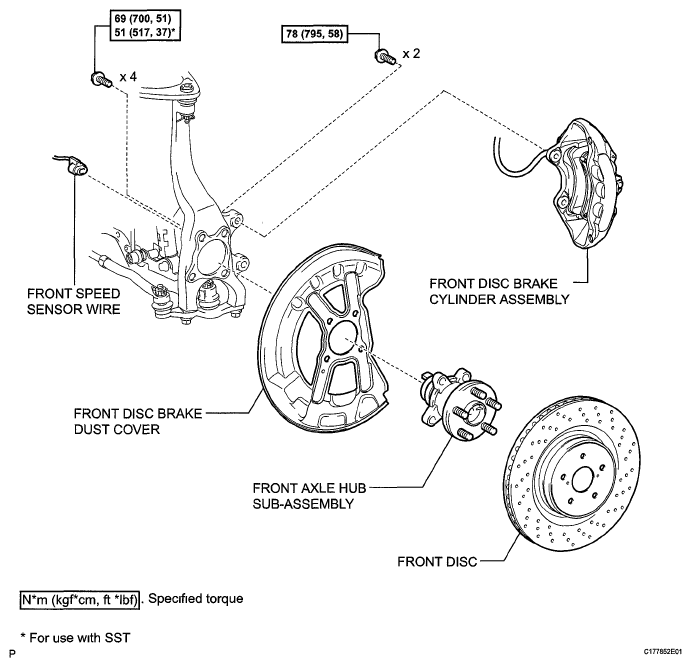

Fig 1: Front Axle Hub Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

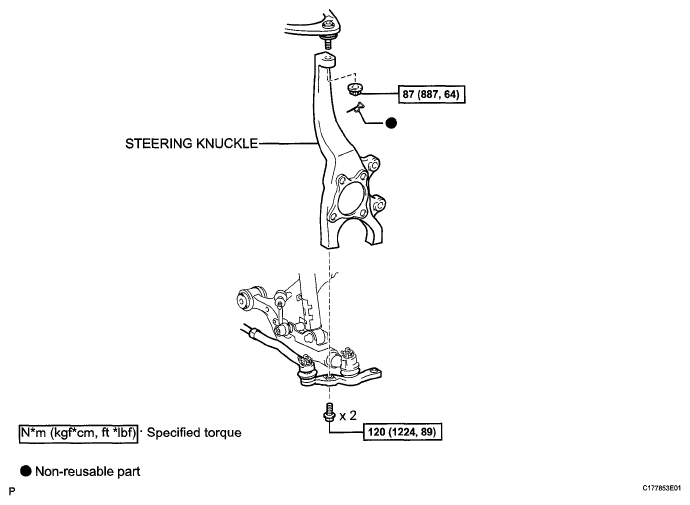

Fig 2: Steering Knuckle Replacement Components With Torque Specifications (2 Of 2)
