Rear Sunshade Assembly: Components

Fig 1: Identifying Rear Sunshade Assembly Replacement Components (1 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

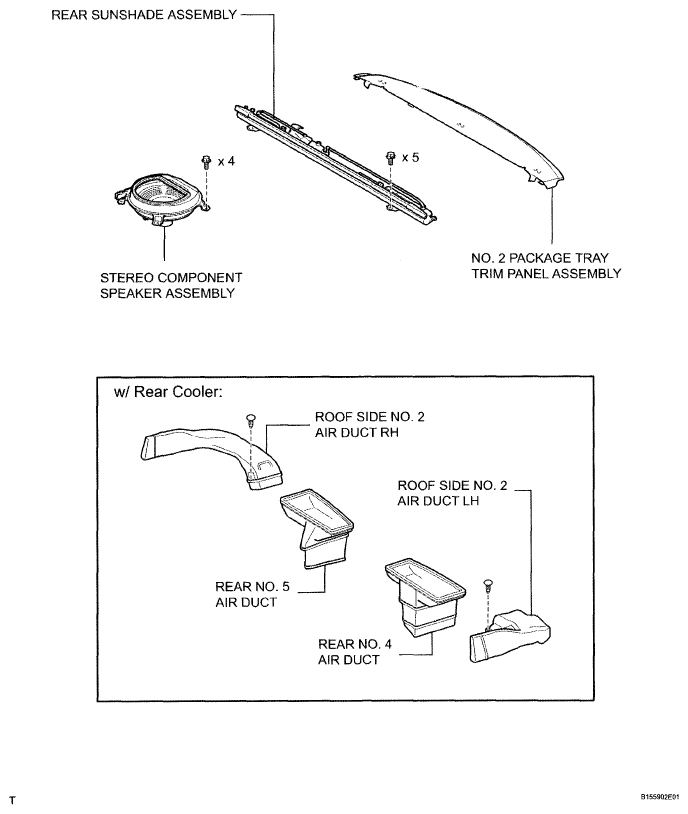

Fig 2: Identifying Rear Sunshade Assembly Replacement Components (2 Of 2)
