Charging Systems: Generator: Components

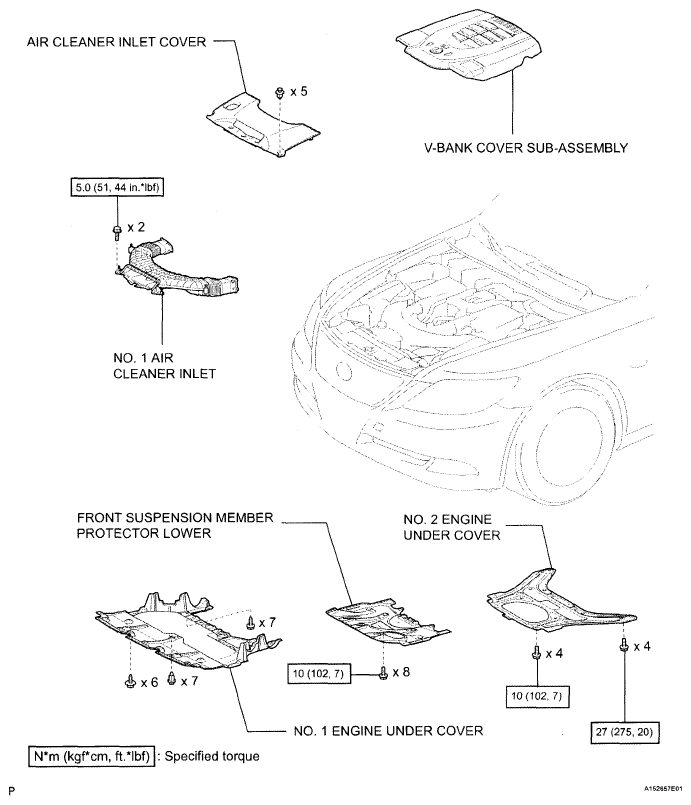

Fig 1: Identifying Generator Replacement Components With Torque Specifications (1 Of 3)
G05854730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

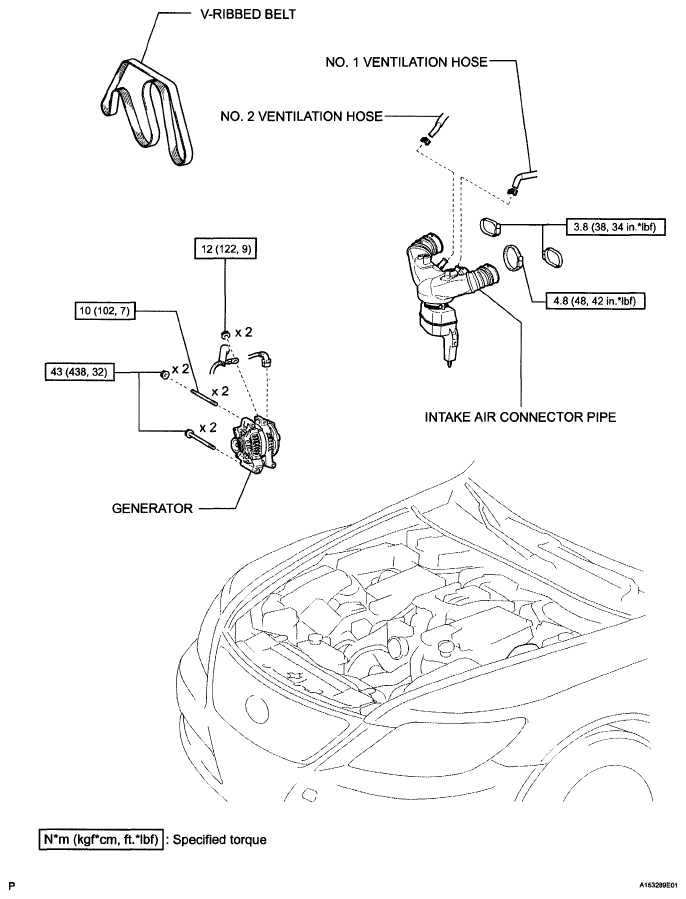

Fig 2: Generator Replacement Components With Torque Specifications (2 Of 3)
G05854731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

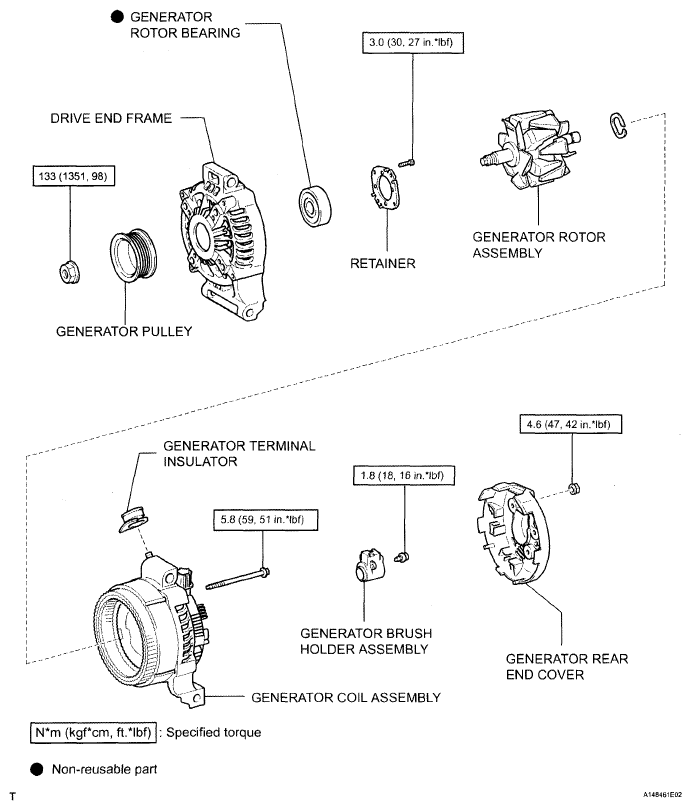

Fig 3: Generator Replacement Components With Torque Specifications (3 Of 3)
G05854732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
