Front Power Seat Control System
›
Parts Location
Parts Location
Fig 1: Identifying Front Power Seat Control System Parts Location - Passenger Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

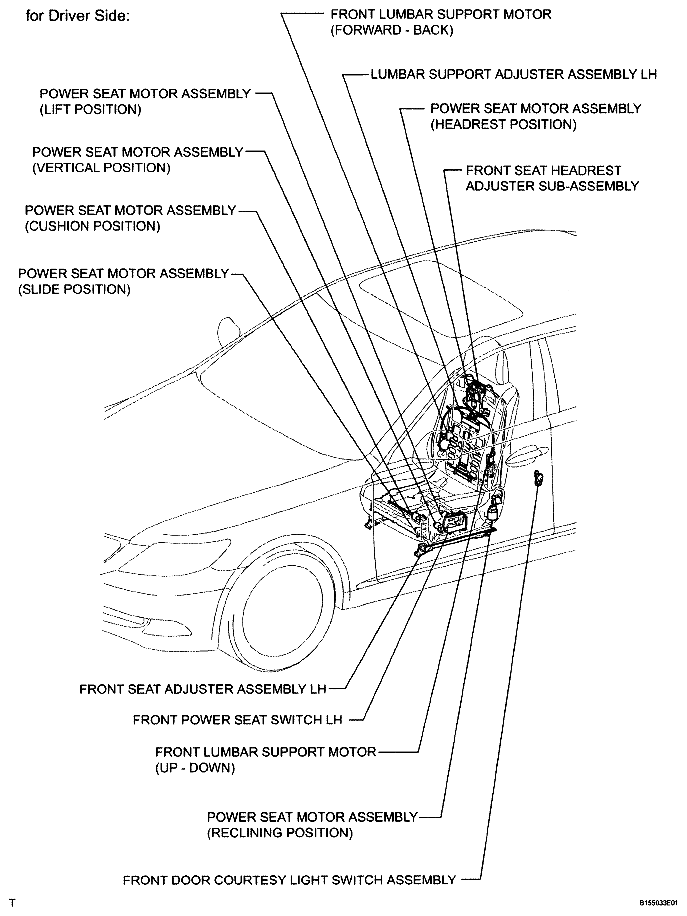

Fig 2: Identifying Front Power Seat Control System Parts Location - Driver Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

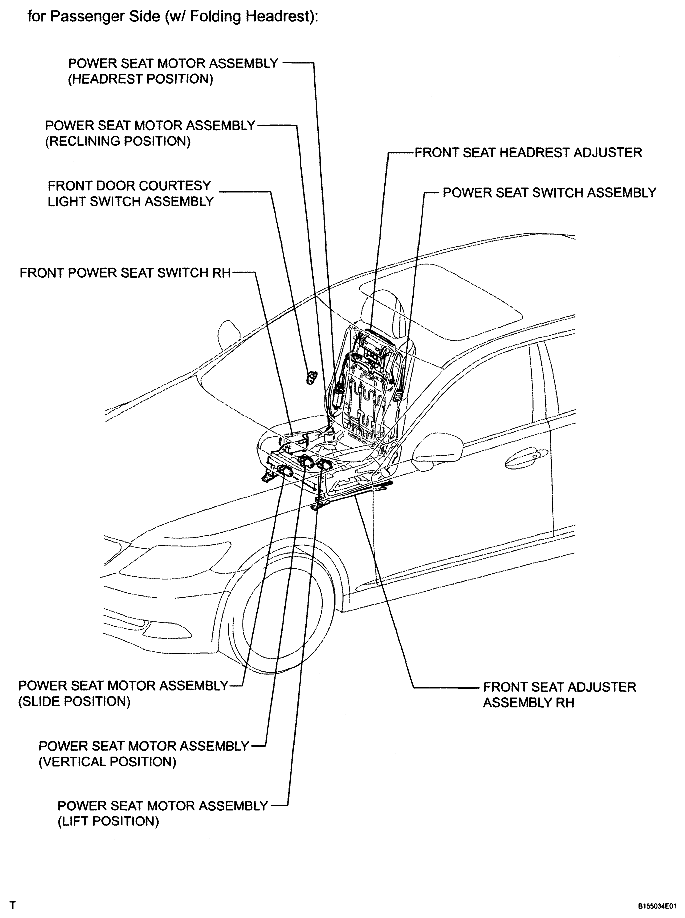

Fig 3: Identifying Front Power Seat Control System Parts Location - Passenger Side (W/ Folding Headrest)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Front Power Seat Control System Parts Location - Passenger Side (W/ Normal Headrest)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
