Front Seatback Heater: Components

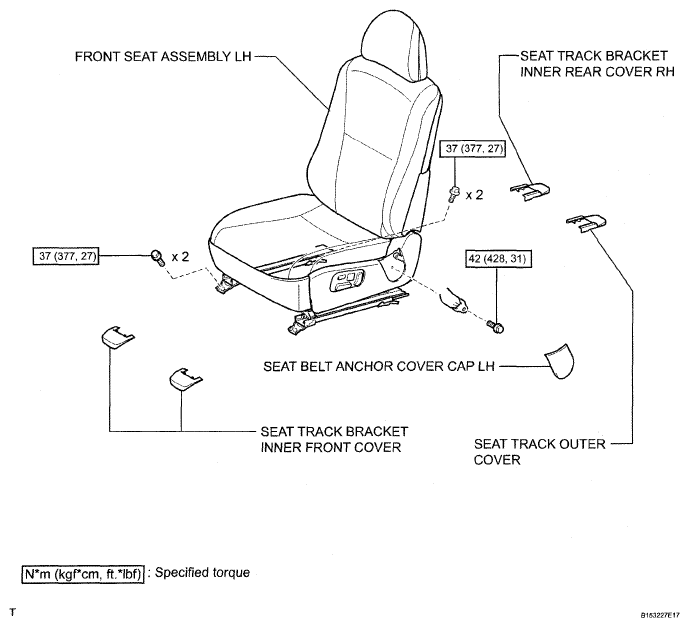

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications
G04953200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

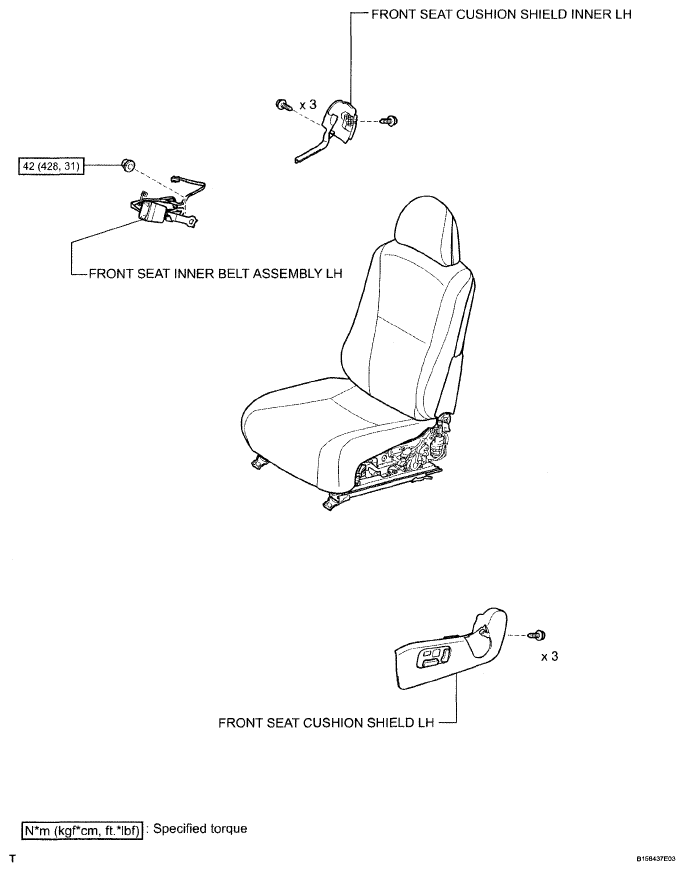

Fig 2: Front Seat Inner Belt Assembly Replacement Components With Torque Specifications
G04953201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

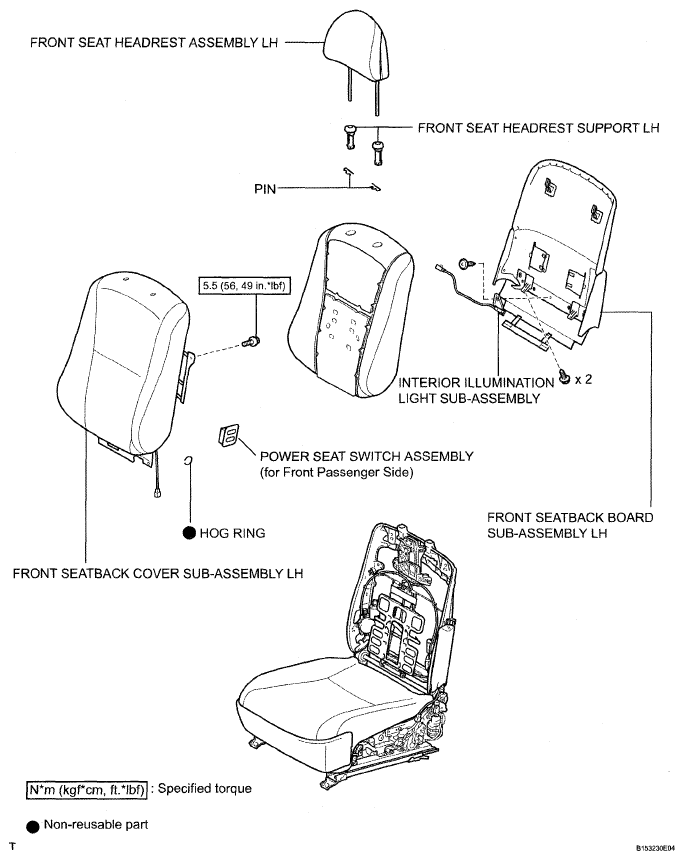

Fig 3: Front Seatback Heater Assembly Replacement Components With Torque Specifications
G04953202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
