Lexus
›
2008
›
LS 460L
›
Repair and Diagnosis
›
Body & Frame
›
Seats
›
Rear Power Seat Control System
›
Parts Location
Parts Location

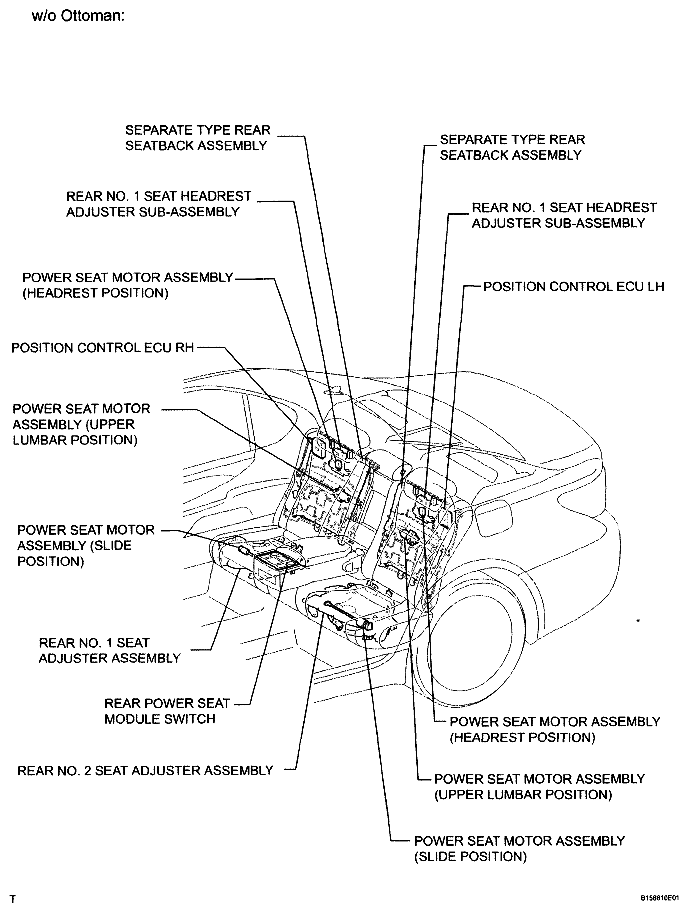

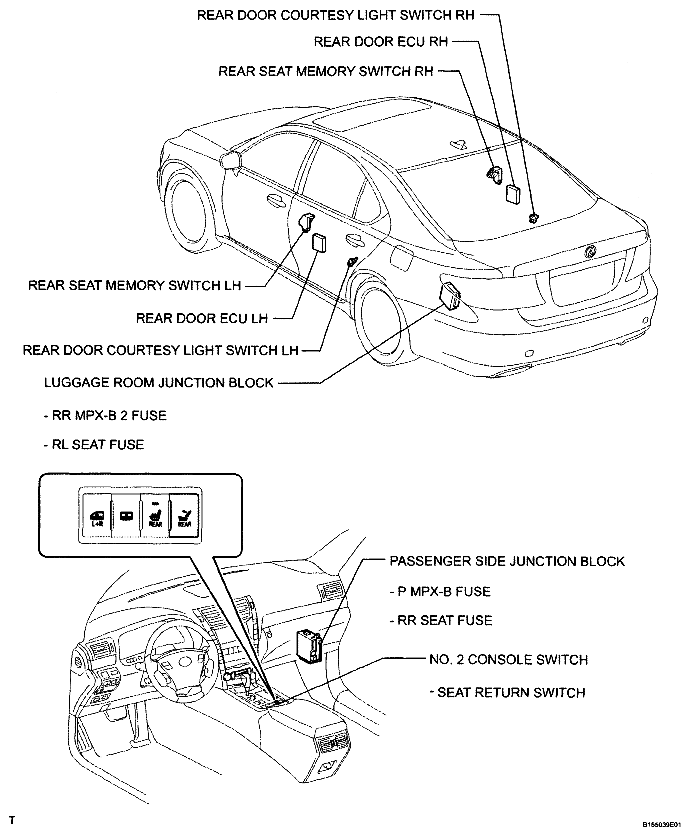

Fig 1: Identifying Rear Power Seat Control System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Rear Power Seat Control System Parts Location (W/O Ottoman)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

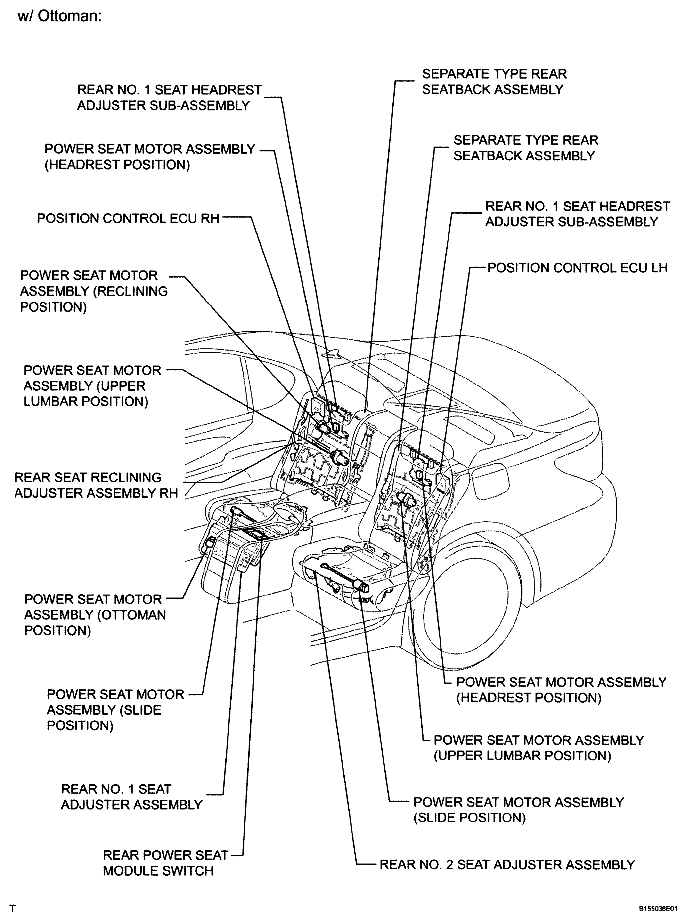

Fig 3: Identifying Rear Power Seat Control System Parts Location (W/ Ottoman)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
