Driver Side Power Window Does Not Operate With Power Window Master Switch: Wiring Diagram

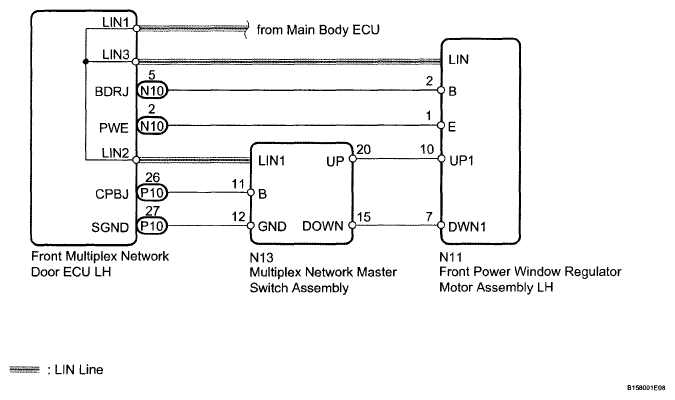

Fig 1: Identifying Multiplex Network Master Switch - Wiring Diagram
G05853292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
