Rear Power Window LH Does Not Operate With Rear Power Window Switch LH: Wiring Diagram

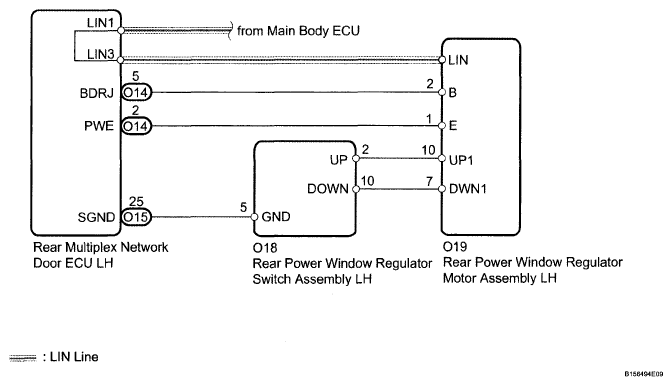

Fig 1: Identifying Rear Power Window Regulator Switch - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
