Lexus
›
2008
›
LS 460L
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Power Outlet - 115V
›
Notes
Power Outlet - 115V: Notes

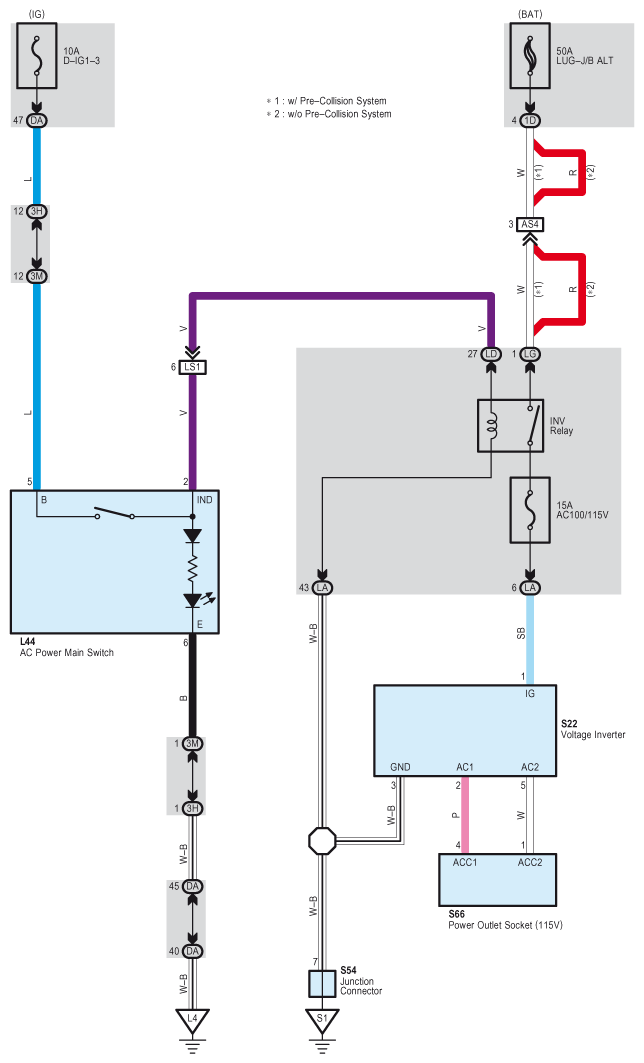

Fig 1: Power Outlet - 115V - Circuit Diagram
