Power Shoulder Belt Anchorage: Notes

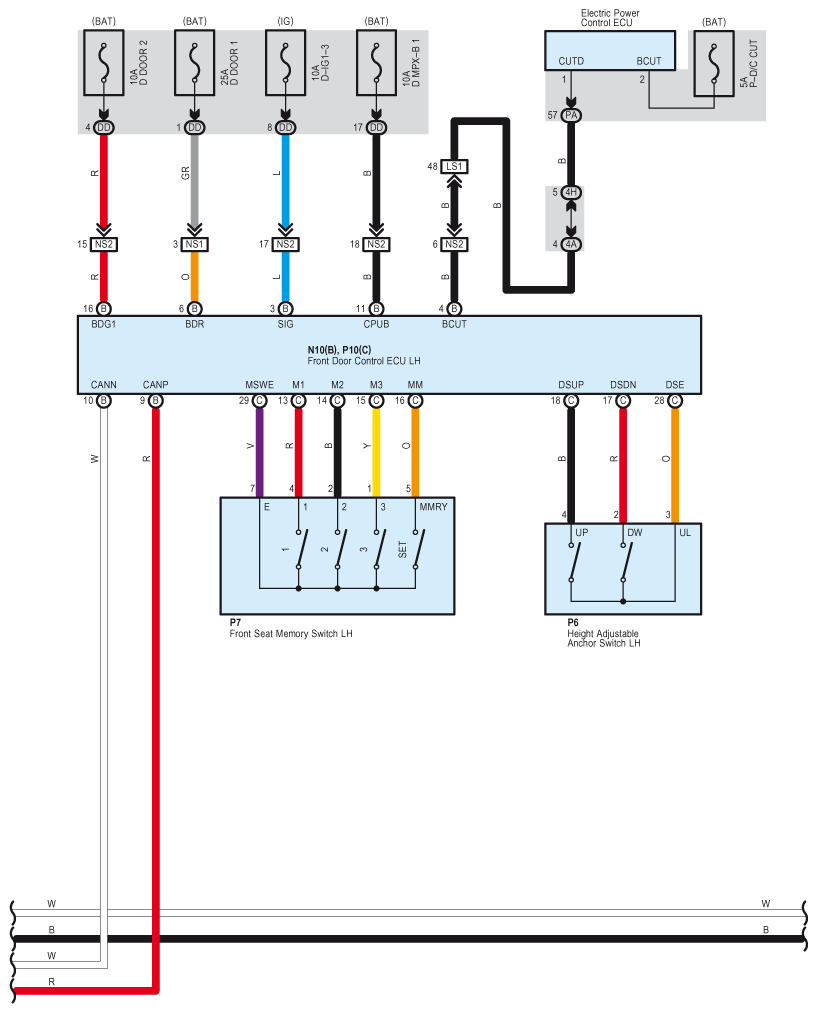

Fig 1: Power Shoulder Belt Anchorage - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

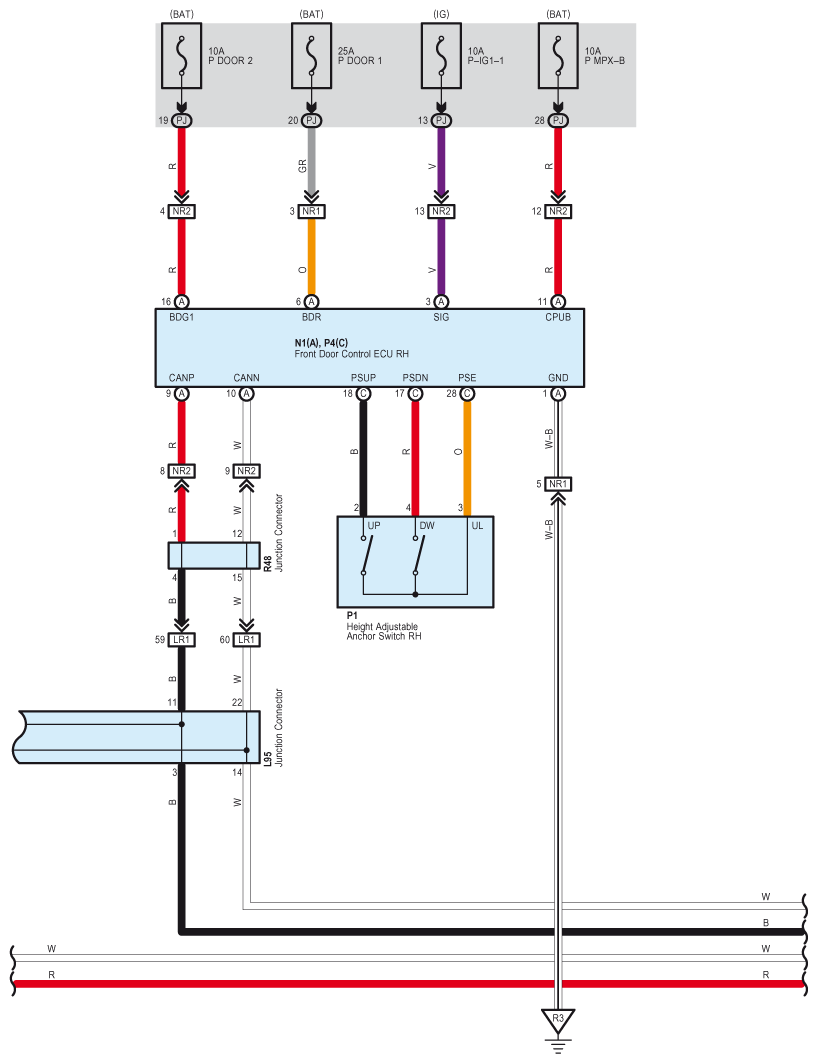

Fig 2: Power Shoulder Belt Anchorage - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

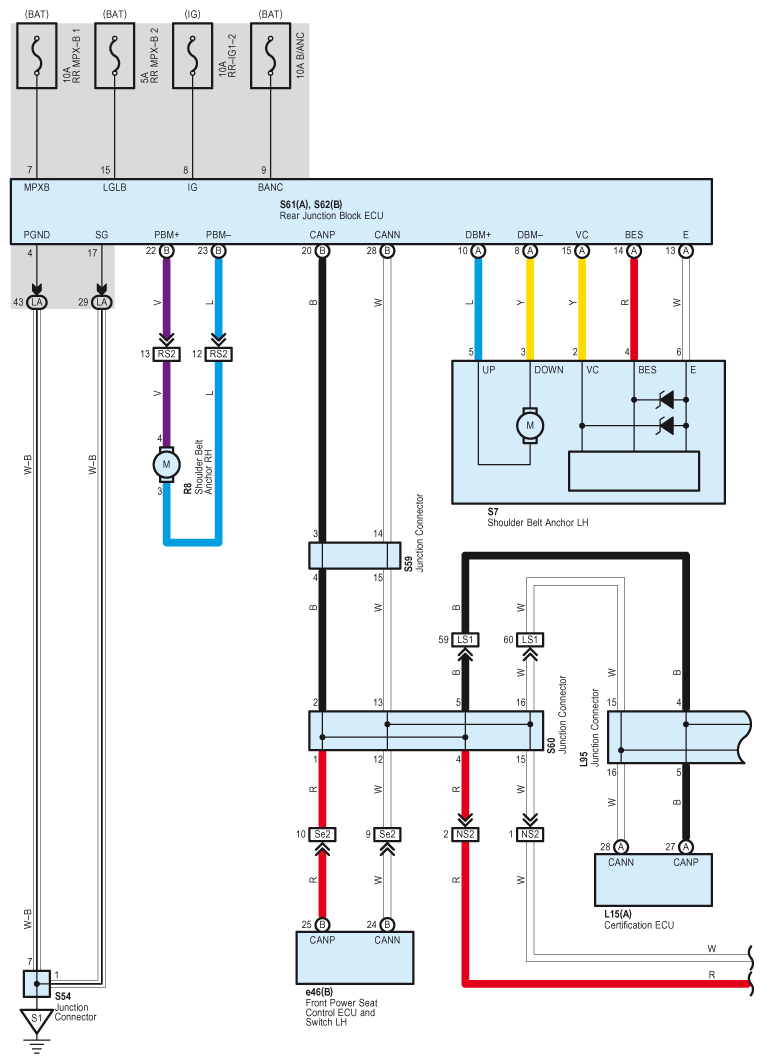

Fig 3: Power Shoulder Belt Anchorage - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

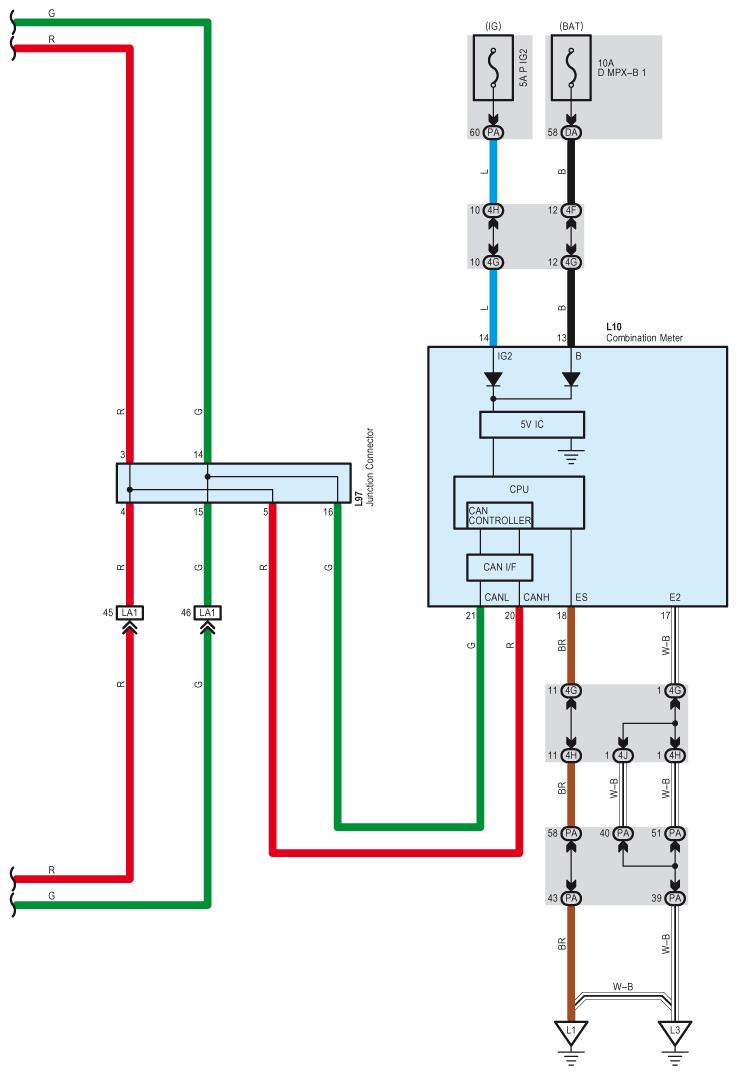

Fig 4: Power Shoulder Belt Anchorage - Circuit Diagram (4 Of 5)

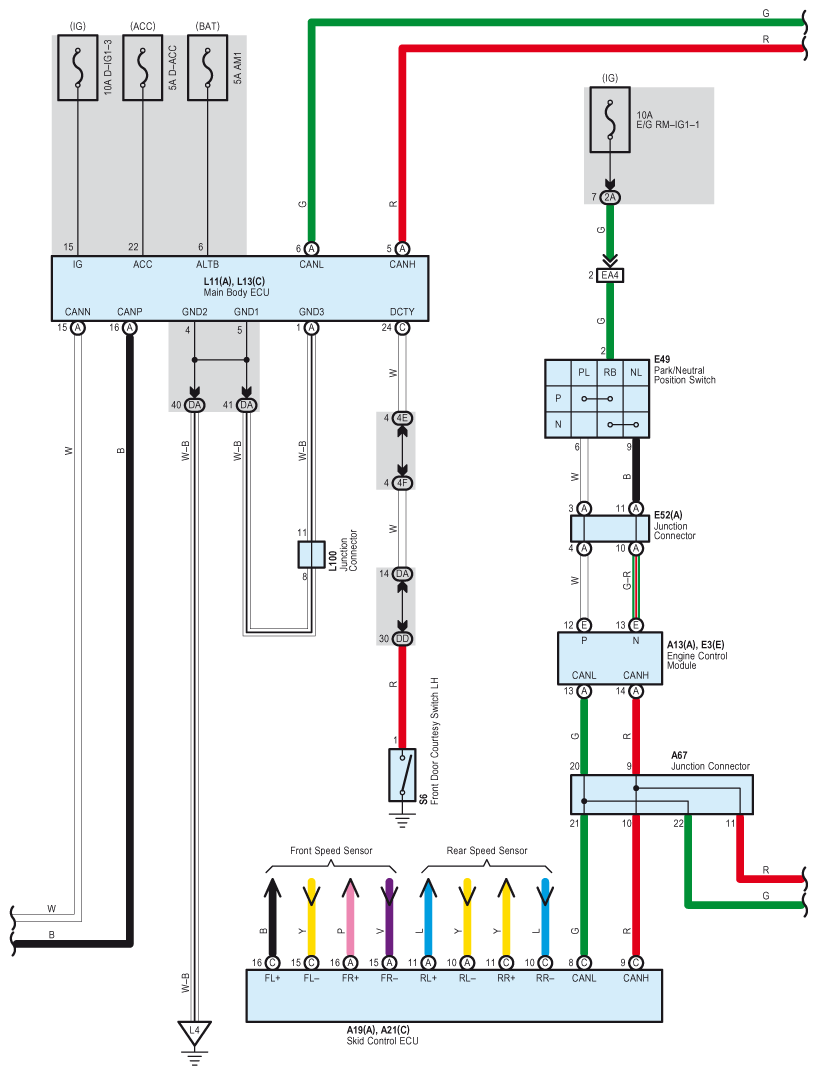

Fig 5: Power Shoulder Belt Anchorage - Circuit Diagram (5 Of 5)
