Vibration Seat: Notes

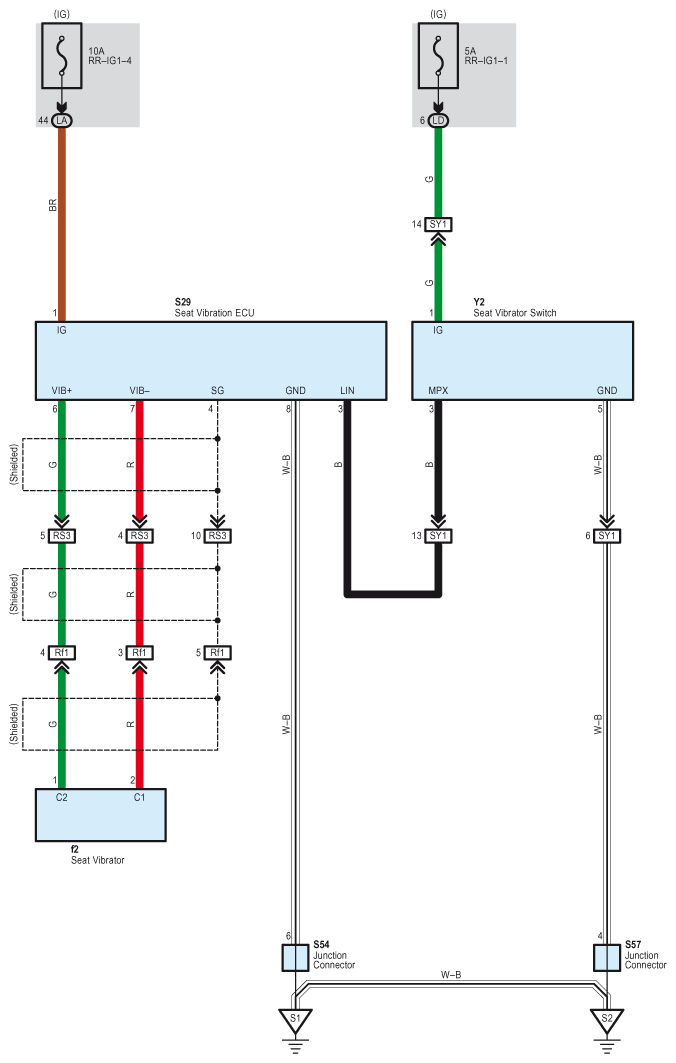

Fig 1: Vibration Seat - Circuit Diagram
G07598424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
