System Diagram

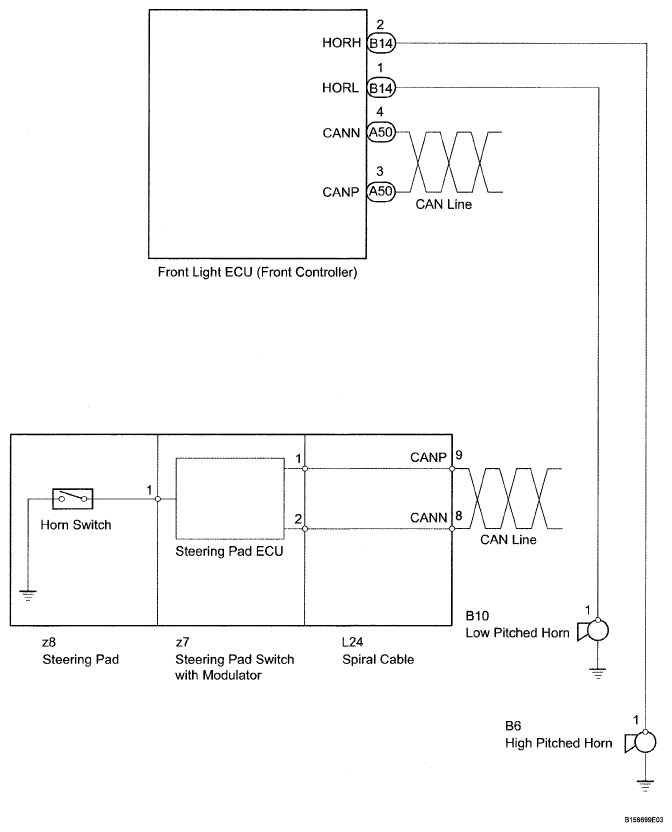

Fig 1: Horn System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION CHART

Sender	Receiver	Signal	Line
Steering pad switch with modulator (Steering pad ECU)	Front light ECU (Front controller)	Horn signal	CAN
