Oil And Oil Filter: Components

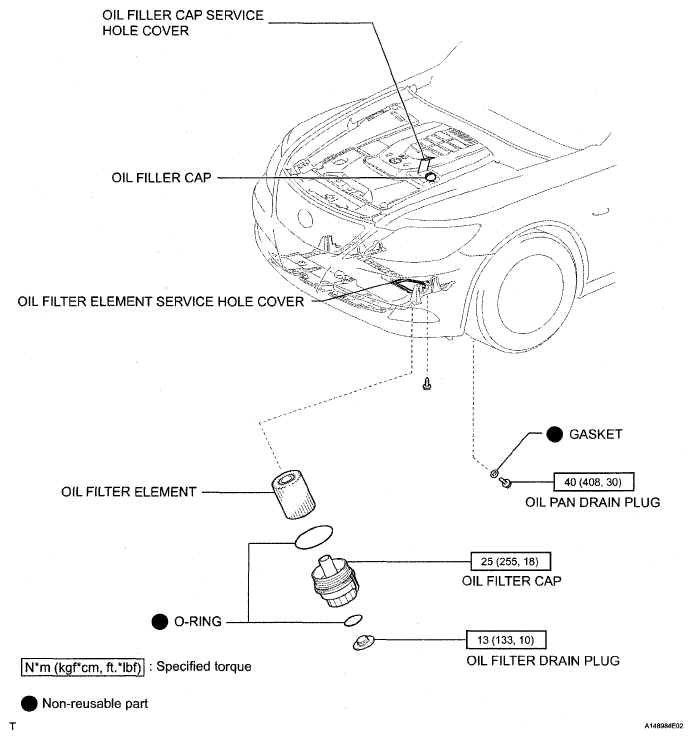

Fig 1: Oil And Oil Filter Replacement Components With Torque Specifications
G04948239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
