Oil Level Sensor: Components

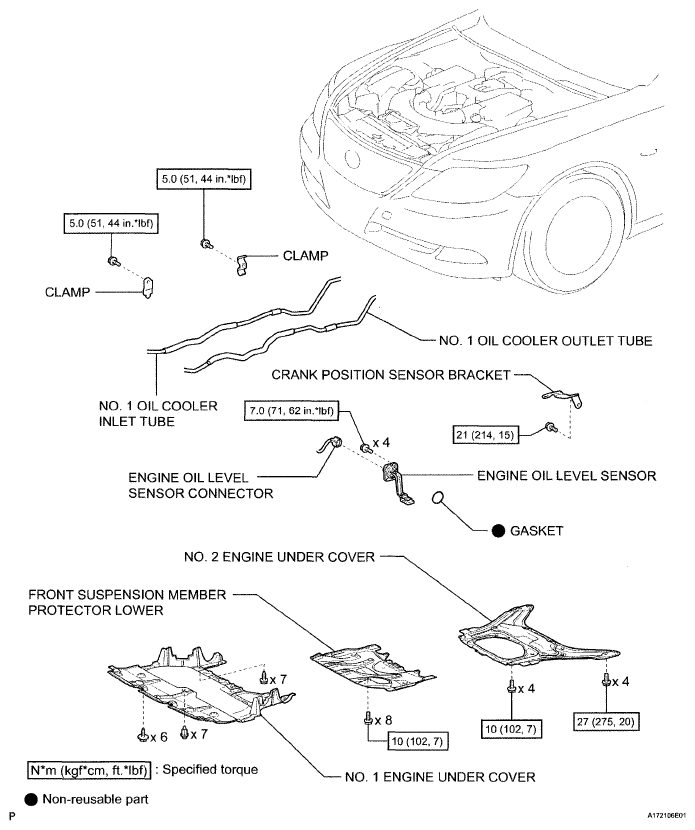

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications
G04948257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
