Oil Pressure Switch: Components

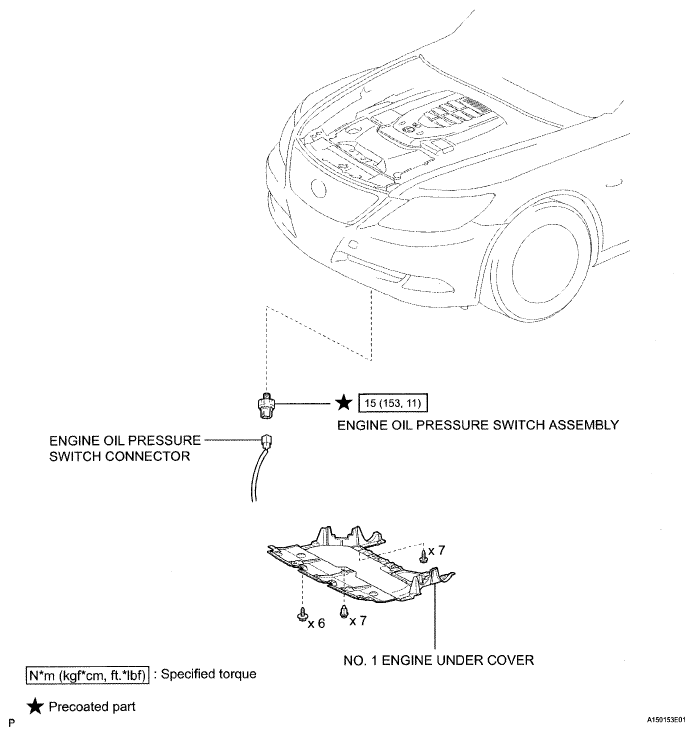

Fig 1: Oil Pressure Switch Replacement Components With Torque Specifications
G04948253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
